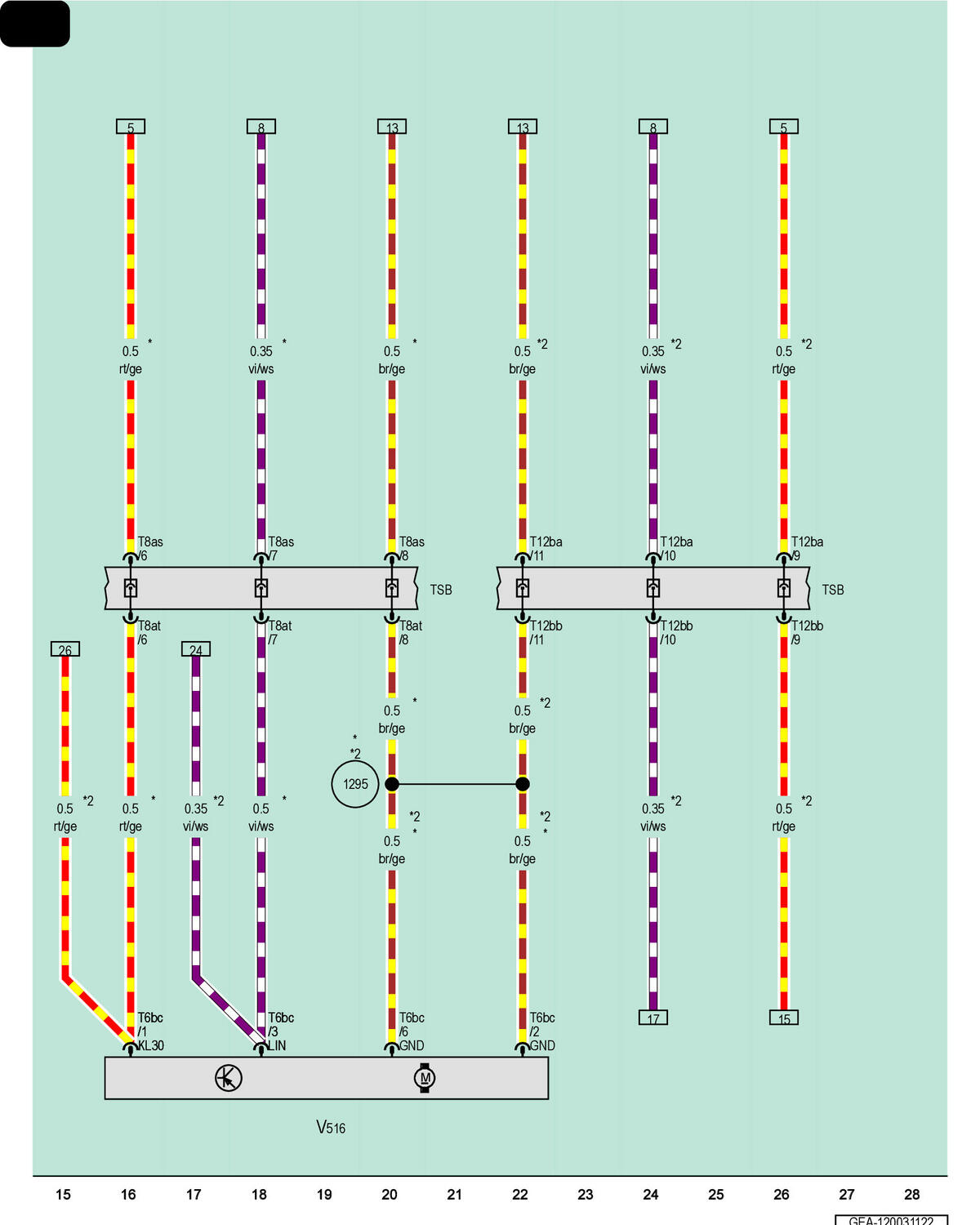

Right Front Seat Backrest Fan 1

Courtesy of AUDI OF AMERICA, LLC

T6bc

6-Pin Connector, Black

T8as

8-Pin Connector, Black

T8at

8-Pin Connector, Black

T12ba

12-Pin Connector, Black

T12bb

12-Pin Connector, Black

TSB

Front Passenger Seat Backrest Coupling Point

V516

Right Front Seat Backrest Fan 1

1295

Ground Connection 2 (in Right Front Seat Wiring Harness)

*

Driver and Front Passenger Memory Seats

*2

Driver Memory Seat
