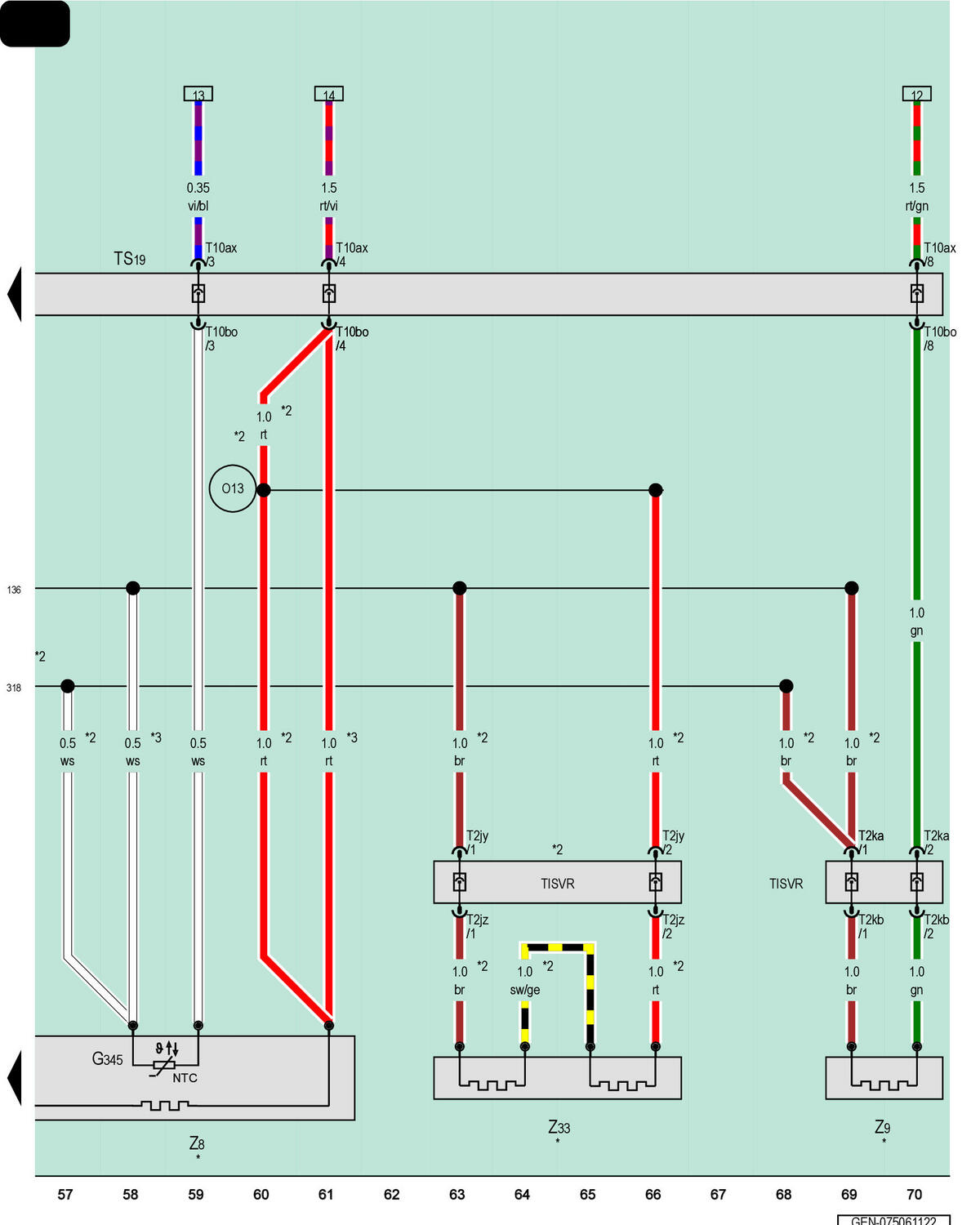

Front Passenger Seat Heating Element, Front Passenger Backrest Heating Element, Front Passenger Seat Bolster Heater
G345
Right Front Seat Temperature Sensor
T2jy
2-Pin Connector, Black
T2jz
2-Pin Connector, Black
T2ka
2-Pin Connector, Black
T2kb
2-Pin Connector, Black
T10ax
10-Pin Connector, White
T10bo
10-Pin Connector, White
TISVR
Coupling Station in Right Front Seat
TS19
Front Passenger Seat Coupling Point
Z8
Front Passenger Seat Heating Element
Z9
Front Passenger Backrest Heating Element
Z33
Front Passenger Seat Bolster Heater
136
Ground Connection 2 (in Heated Seats Wiring Harness)
318
Ground Connection 4 (in Heated Seats Wiring Harness)
O13
Connection 2 (in Heated Seats Wiring Harness)
*
Pre-Wired Component
*2
For Vehicles with Seat Ventilation
*3
For Vehicles Without Seat Ventilation
