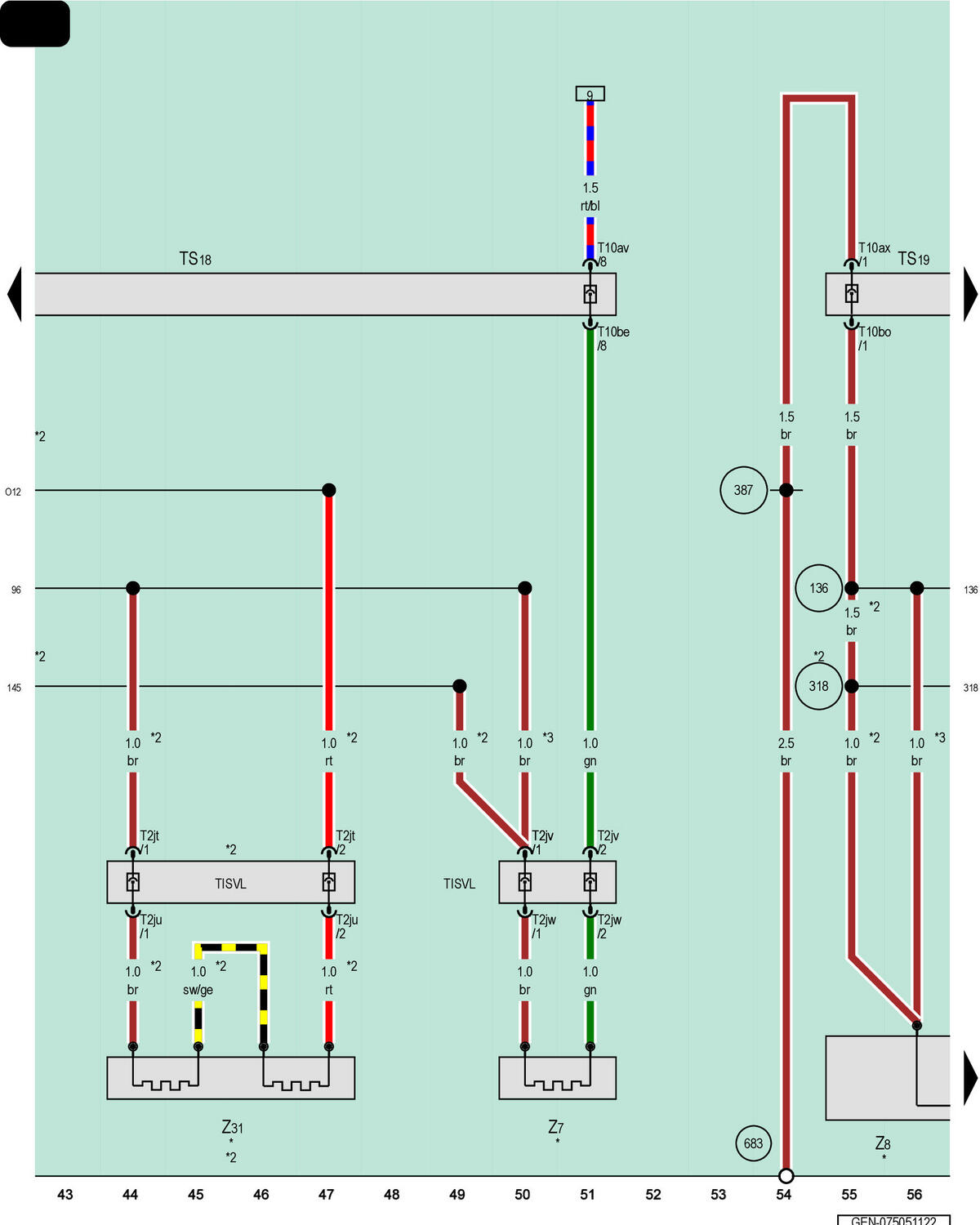

Driver Backrest Heating Element, Front Passenger Seat Heating Element, Driver Seat Bolster Heater
T2jt
2-Pin Connector, Black
T2ju
2-Pin Connector, Black
T2jv
2-Pin Connector, Black
T2jw
2-Pin Connector, Black
T10av
10-Pin Connector, White
T10ax
10-Pin Connector, White
T10be
10-Pin Connector, White
T10bo
10-Pin Connector, White
TISVL
Coupling Station in Left Front Seat
TS18
Driver Seat Coupling Point
TS19
Front Passenger Seat Coupling Point
Z7
Driver Backrest Heating Element
Z8
Front Passenger Seat Heating Element
Z31
Driver Seat Bolster Heater
96
Ground Connection 1 (in Heated Seats Wiring Harness)
136
Ground Connection 2 (in Heated Seats Wiring Harness)
145
Ground Connection 3 (in Heated Seats Wiring Harness)
318
Ground Connection 4 (in Heated Seats Wiring Harness)
387
Ground Connection 22 (in Main Wiring Harness)
683
Ground Connection on Right Front Side Member
O12
Connection 1 (in Heated Seats Wiring Harness)
*
Pre-Wired Component
*2
For Vehicles with Seat Ventilation
*3
For Vehicles Without Seat Ventilation
