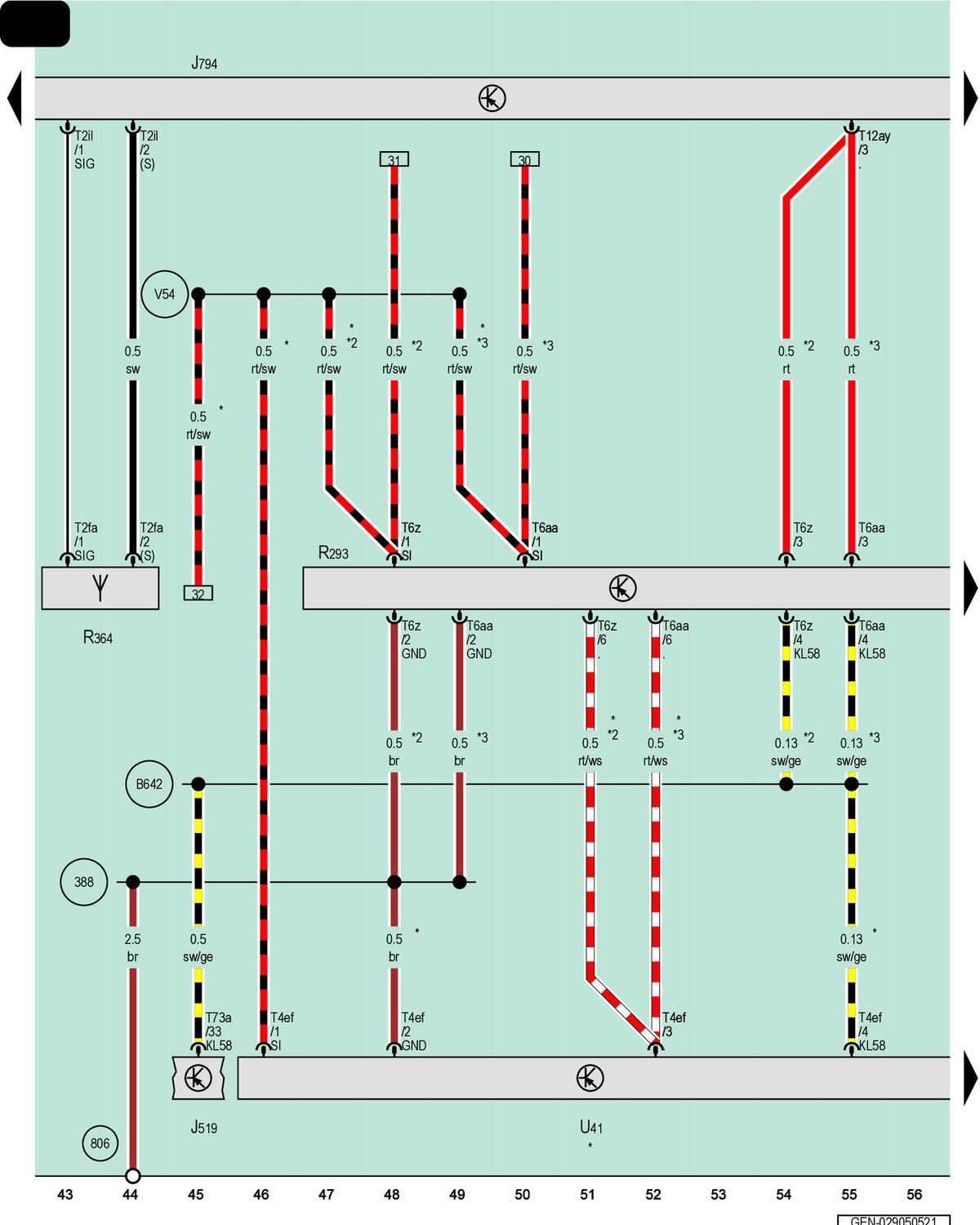

Vehicle Electrical System Control Module, Information Electronics Control Module 1, USB Distributor, Vehicle Interior Communication Antenna, USB Connection 1
J519
Vehicle Electrical System Control Module
J794
Information Electronics Control Module 1
R293
USB Distributor
R364
Vehicle Interior Communication Antenna
T2fa
2-Pin Connector, Naturally Cloudy
T2il
2-Pin Connector, Naturally Cloudy
T4ef
4-Pin Connector, Red
T6aa
6-Pin Connector, Brown
T6z
6-Pin Connector, Black
T12ay
12-Pin Connector, Green
T73a
73-Pin Connector, Black
U41
USB Connection 1
388
Ground Connection 23 (in Main Wiring Harness)
806
Ground Connection 4 on Center Tunnel
B642
Positive Connection (58) (in Main Wiring Harness)
V54
Telephone Connection 1 (in Main Wiring Harness)
*
For Vehicles with External Audio Source Connection - Audi Music Interface
*2
For Vehicles with Mobile Online Services
*3
For Vehicles without Mobile Online Services
