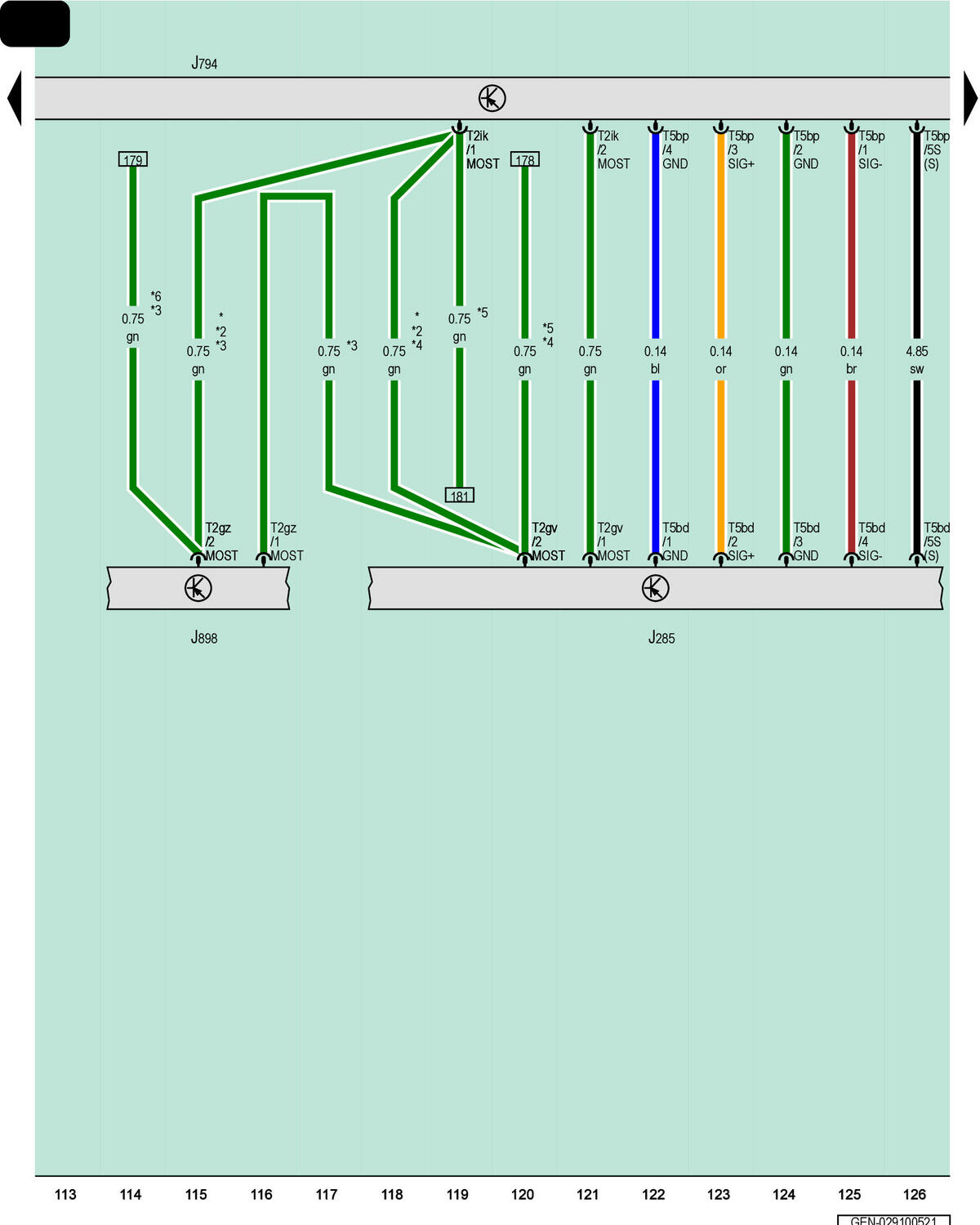

Instrument Cluster Control Module, Information Electronics Control Module 1, Windshield Projection Head Up Display Control Module

Courtesy of AUDI OF AMERICA, LLC

J285

Instrument Cluster Control Module

J794

Information Electronics Control Module 1

J898

Windshield Projection Head Up Display Control Module

T2gv

2-Pin Connector, Black

T2gz

2-Pin Connector, Black

T2ik

2-Pin Connector, Black

T5bd

5-Pin Connector, Black

T5bp

5-Pin Connector, White

*

For Vehicles with Bose Sound System

*2

For Vehicles with Audi Sound System

*3

For Vehicles with Windshield Projection

*4

For Vehicles Without Windshield Projection

*5

For Vehicles with TV Tuner

*6

For Vehicles with Bang & Olufsen Sound System
