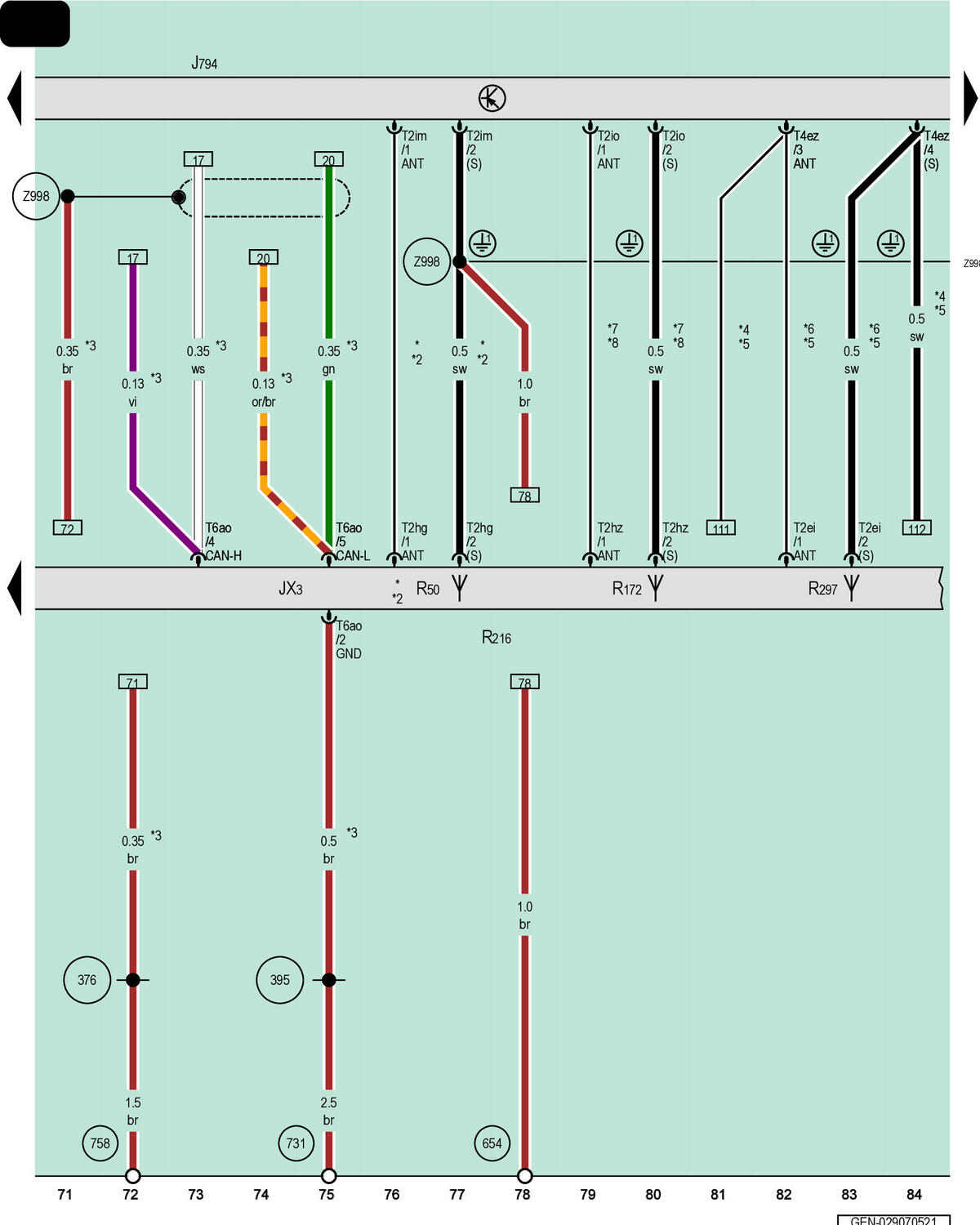

Information Electronics Control Module 1, Roof Antenna
JX3
Roof Antenna Control Module
J794
Information Electronics Control Module 1
R50
GPS Antenna
R172
Satellite Tuner Antenna
R216
Roof Antenna
R297
LTE Antenna 1, In the Rear Bumper, Center
T2ei
2-Pin Connector, Purple
T2hg
2-Pin Connector, Blue
T2hz
2-Pin Connector, Green
T2im
2-Pin Connector, Blue
T2io
2-Pin Connector, Brown
T4ez
4-Pin Connector, Purple
T6ao
6-Pin Connector, Black
376
Ground Connection 11 (in Main Wiring Harness)
395
Ground Connection 30 (in Main Wiring Harness)
654
Ground Connection on Right D-Pillar
731
Ground Connection 2 on Right Rear Wheel Housing
758
Ground Connection 3 on Center Tunnel
Z998
Cable Shield
*
Country-Specific
*2
For Vehicles with Navigation System
*3
Depending on Equipment
*4
For Vehicles with Emergency Call Module
*5
For Vehicles with Mobile Online Services
*6
For Vehicles Without Emergency Call Module
*7
For Vehicles with Digital Radio
*8
For USA Only
