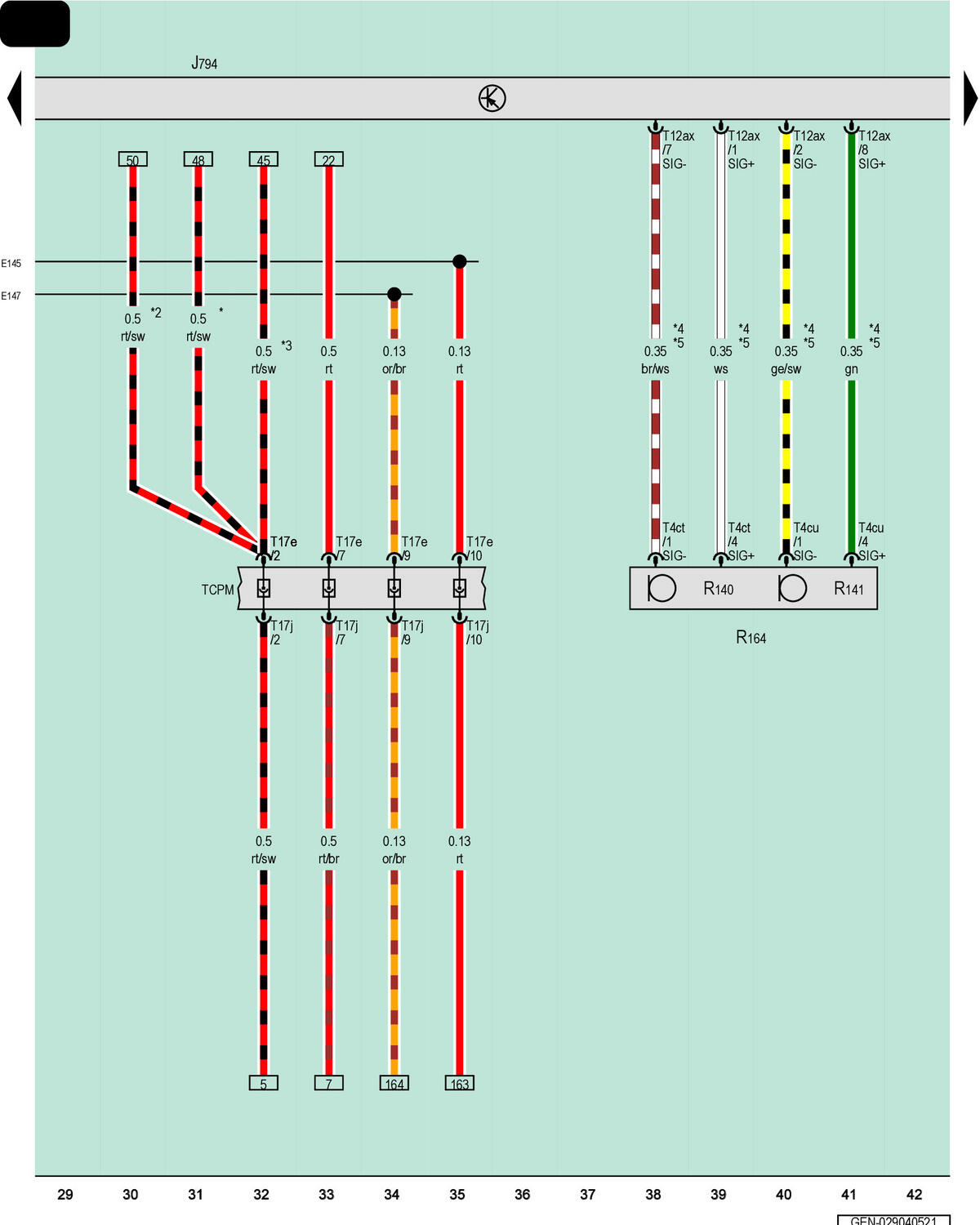

Information Electronics Control Module 1, Microphone Unit In Front Roof Module
J794
Information Electronics Control Module 1
R140
Left Front Microphone
R141
Right Front Microphone
R164
Microphone Unit in Front Roof Module
T4ct
4-Pin Connector, Gray
T4cu
4-Pin Connector, Blue
T12ax
12-Pin Connector, Blue
T17e
17-Pin Connector, Black
T17j
17-Pin Connector, Black
TCPM
Coupling Point on Instrument Panel, Center
E145
Connection 1 (CAN Bus Information Electronics Control Module 1, High)
E147
Connection 1 (CAN Bus Information Electronics Control Module 1, Low)
*
For Vehicles with Mobile Online Services
*2
For Vehicles without Mobile Online Services
*3
For Vehicles with External Audio Source Connection - Audi Music Interface
*4
For Vehicles Without Emergency Call Module
*5
Refer to Applicable Emergency Call Module Wiring Diagram
