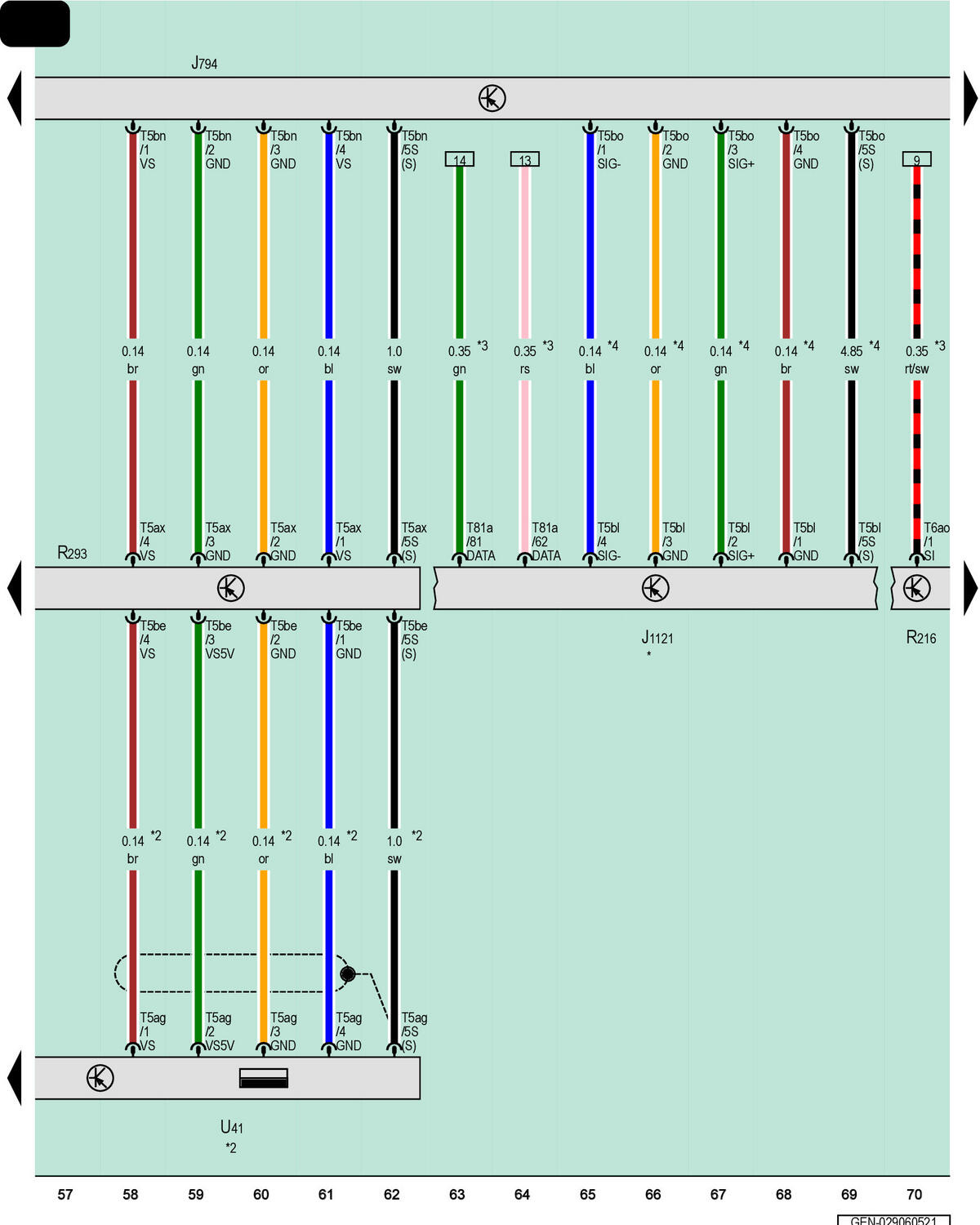

Information Electronics Control Module 1, Driver Assistance Systems Control Module, Roof Antenna, USB Distributor, USB Connection 1
J794
Information Electronics Control Module 1
J1121
Driver Assistance Systems Control Module
R216
Roof Antenna
R293
USB Distributor
T5ag
5-Pin Connector, Blue
T5ax
5-Pin Connector, Green
T5be
5-Pin Connector, Brown
T5bl
5-Pin Connector, Black
T5bn
5-Pin Connector, Brown
T5bo
5-Pin Connector, Green
T6ao
6-Pin Connector, Black
T81a
81-Pin Connector, Black
U41
USB Connection 1
*
Refer to Applicable Peripheral Camera Wiring Diagram
*2
For Vehicles with External Audio Source Connection - Audi Music Interface
*3
Depending on Equipment
*4
For Vehicles with Peripheral Camera
