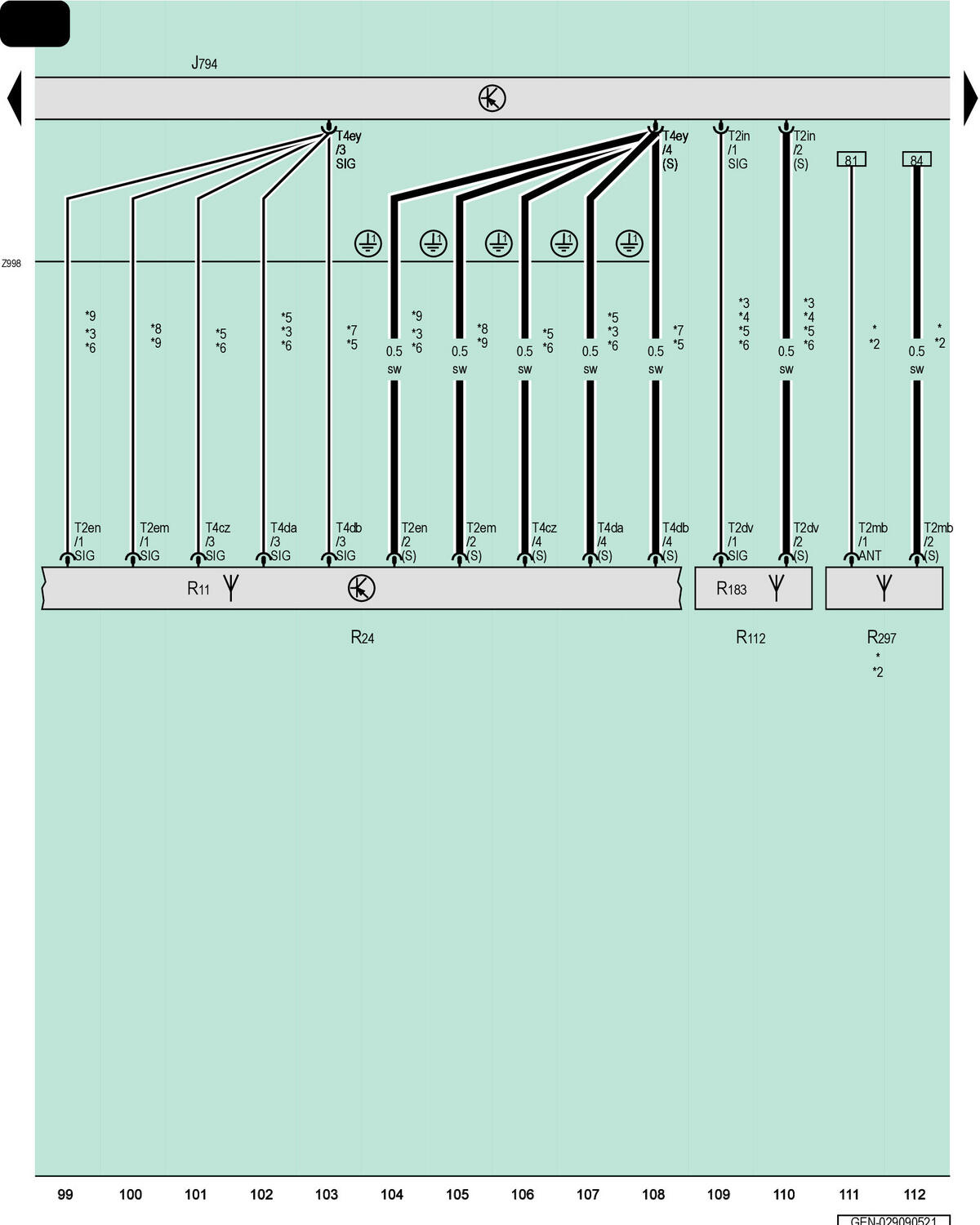

Information Electronics Control Module 1, Antenna Amplifier, Antenna Amplifier 3, LTE Antenna 1
J794
Information Electronics Control Module 1
R11
Antenna
R24
Antenna Amplifier
R112
Antenna Amplifier 3
R183
Digital Radio Antenna
R297
LTE Antenna 1, In the Rear Bumper, Center
T2dv
2-Pin Connector, Black
T2em
2-Pin Connector, White
T2en
2-Pin Connector, Light Green
T2in
2-Pin Connector, Black
T2mb
2-Pin Connector, Purple
T4cz
4-Pin Connector, White
T4da
4-Pin Connector, Light Green
T4db
4-Pin Connector, Pink
T4ey
4-Pin Connector, White
Z998
Cable Shield
*
For Vehicles with Emergency Call Module
*2
For Vehicles with Mobile Online Services
*3
For Vehicles with Digital Radio
*4
Not for USA
*5
For Vehicles with TV Tuner
*6
For Vehicles Without Japan Equipment
*7
For Vehicles with Japan Equipment
*8
For Vehicles with Satellite Radio
*9
For Vehicles Without TV Tuner
