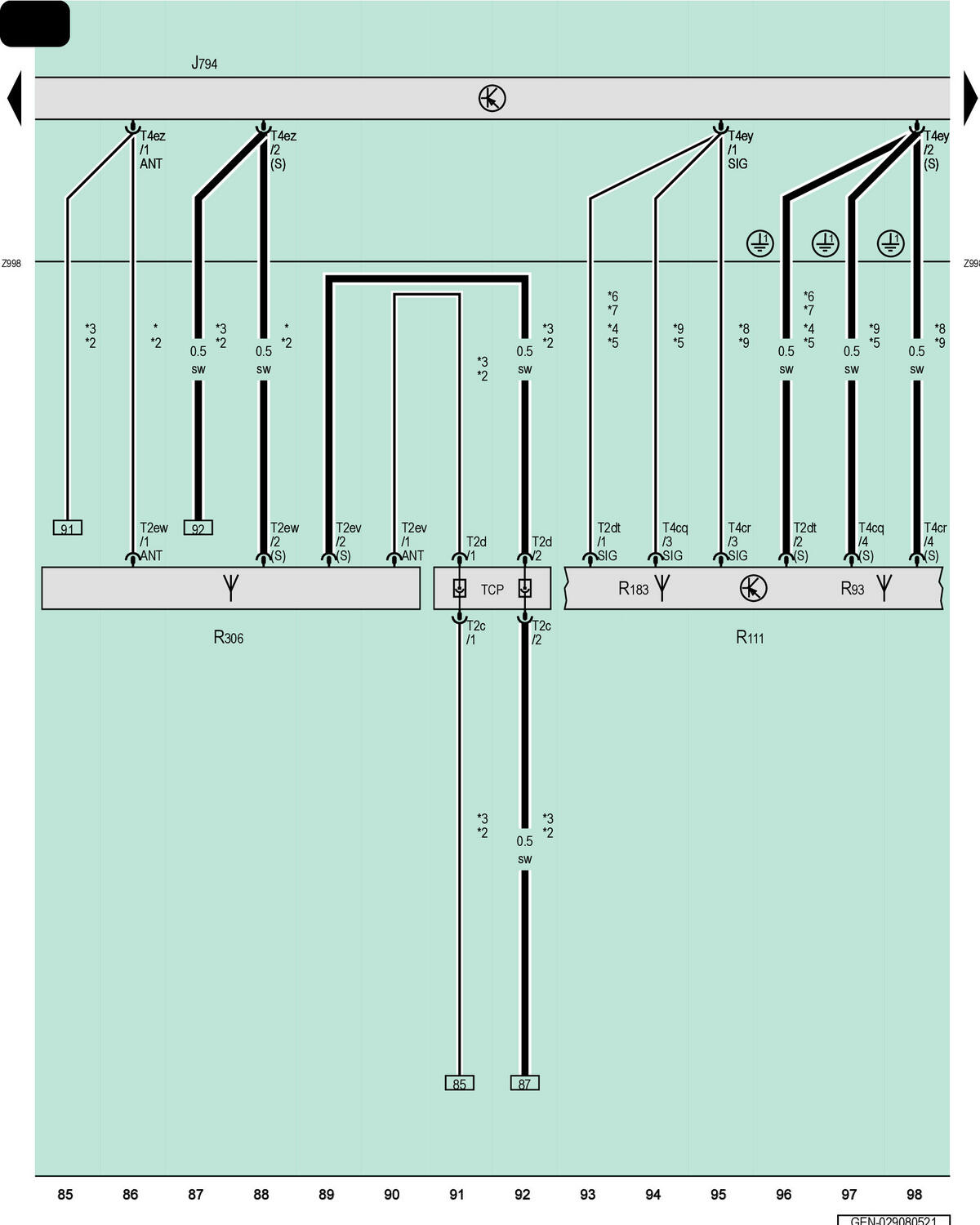

Information Electronics Control Module 1, Antenna Amplifier 2, LTE Antenna 2

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R93

Radio Antenna 2

R111

Antenna Amplifier 2

R183

Digital Radio Antenna

R306

LTE Antenna 2, In the Rear Bumper, Center, In the Instrument Panel

T2c

2-Pin Connector, Purple

T2d

2-Pin Connector, Purple

T2dt

2-Pin Connector, Naturally Cloudy

T2ev

2-Pin Connector, Purple

T2ew

2-Pin Connector, Purple

T4cq

4-Pin Connector, Purple

T4cr

4-Pin Connector, Blue

T4ey

4-Pin Connector, White

T4ez

4-Pin Connector, Purple

TCP

Coupling Point on Instrument Panel

Z998

Cable Shield

*

For Vehicles Without Emergency Call Module

*2

For Vehicles with Mobile Online Services

*3

For Vehicles with Emergency Call Module

*4

For Vehicles with Digital Radio

*5

For Vehicles Without Japan Equipment

*6

For Vehicles with Satellite Radio

*7

For Vehicles Without TV Tuner

*8

For Vehicles with Japan Equipment

*9

For Vehicles with TV Tuner
