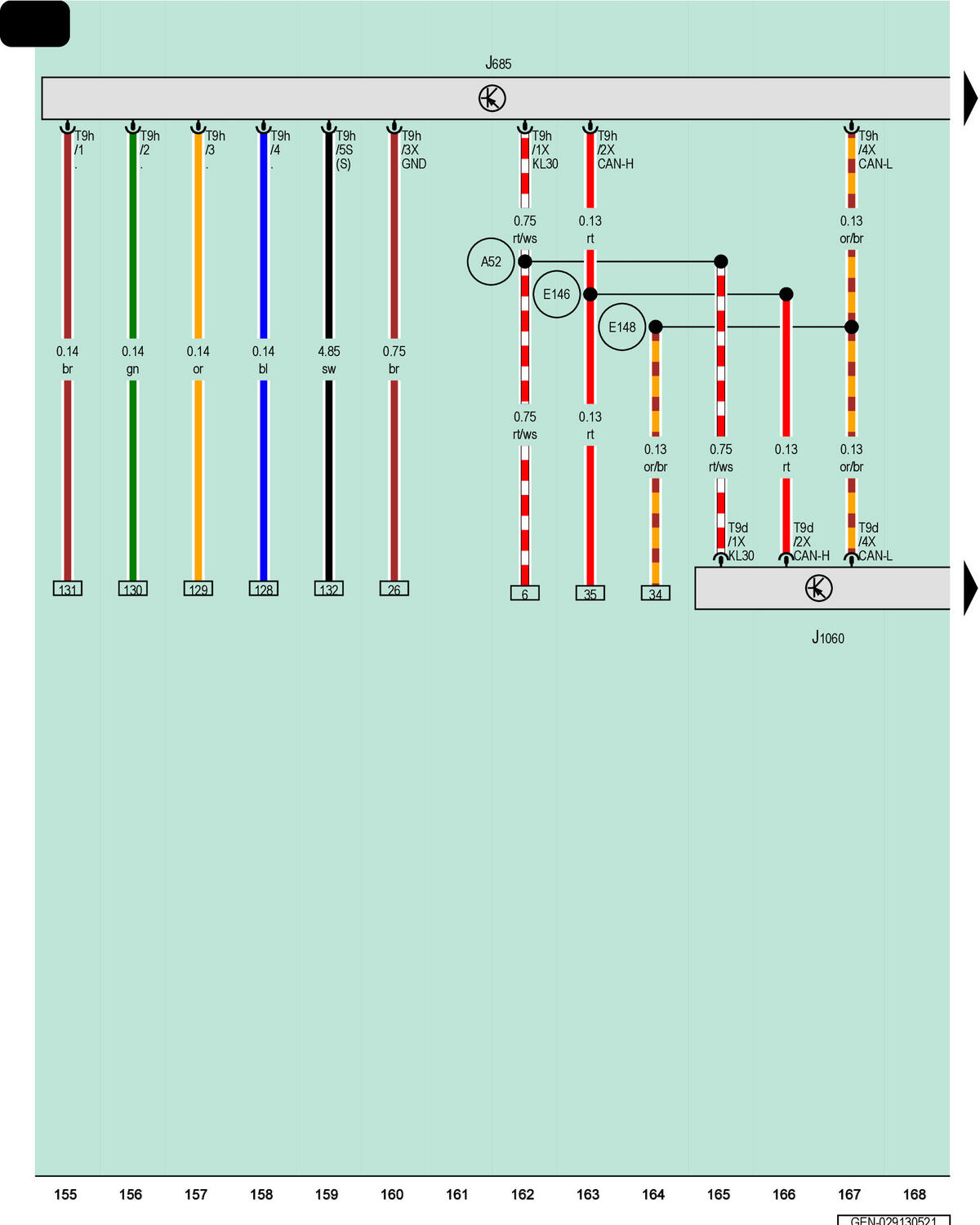

Front Information Display Control Head, Front Information Display Control Head 2

Courtesy of AUDI OF AMERICA, LLC

J685

Front Information Display Control Head

J1060

Front Information Display Control Head 2

T9d

9-Pin Connector, White

T9h

9-Pin Connector, Black

A52

Positive Connection 2 (30) (in Instrument Panel Wiring Harness)

E146

Connection 2 (CAN Bus Information Electronics Control Module 1, High)

E148

Connection 2 (CAN Bus Information Electronics Control Module 1, Low)
