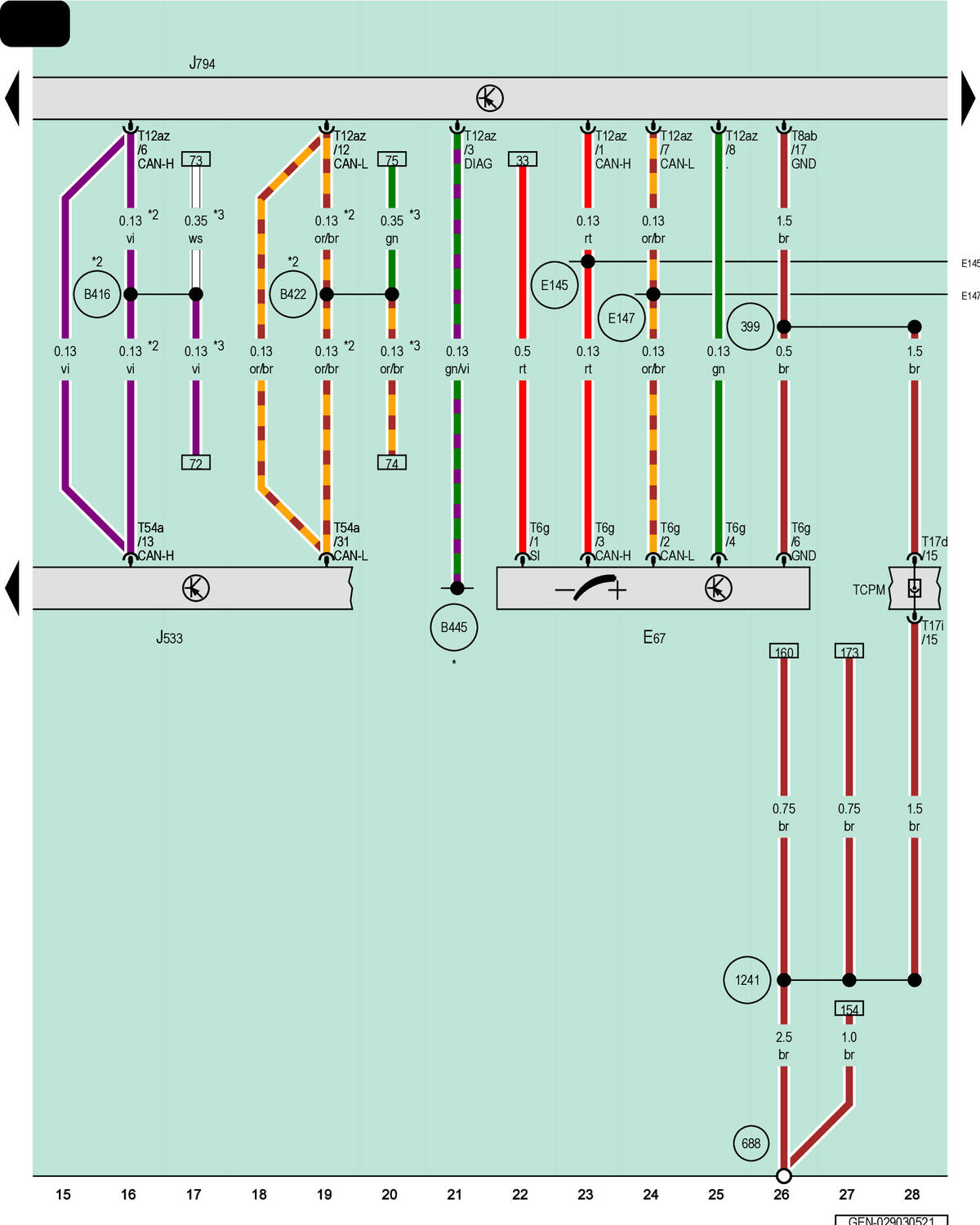

Driver Volume Control, Data Bus On Board Diagnostic Interface, Information Electronics Control Module 1
E67
Driver Volume Control
J533
Data Bus on Board Diagnostic Interface
J794
Information Electronics Control Module 1
T6g
6-Pin Connector, Red
T8ab
8-Pin Connector, Black
T12az
12-Pin Connector, Gray
T17d
17-Pin Connector, White
T17i
17-Pin Connector, White
T54a
54-Pin Connector, Black
TCPM
Coupling Point on Instrument Panel, Center
399
Ground Connection 34 (in Main Wiring Harness)
688
Ground Connection 2 on Center Tunnel
1241
Ground Connection 9 (in Instrument Panel Wiring Harness)
B416
Infotainment CAN Bus High Connection 2 (in Main Wiring Harness)
B422
Infotainment CAN Bus Low Connection 2 (in Main Wiring Harness)
B445
OBD Connection 2 (in Main Wiring Harness)
E145
Connection 1 (CAN Bus Information Electronics Control Module 1, High)
E147
Connection 1 (CAN Bus Information Electronics Control Module 1, Low)
*
Refer to Applicable Wiring Diagram for Infotainment Most Bus
*2
Optional Equipment
*3
Depending on Equipment
