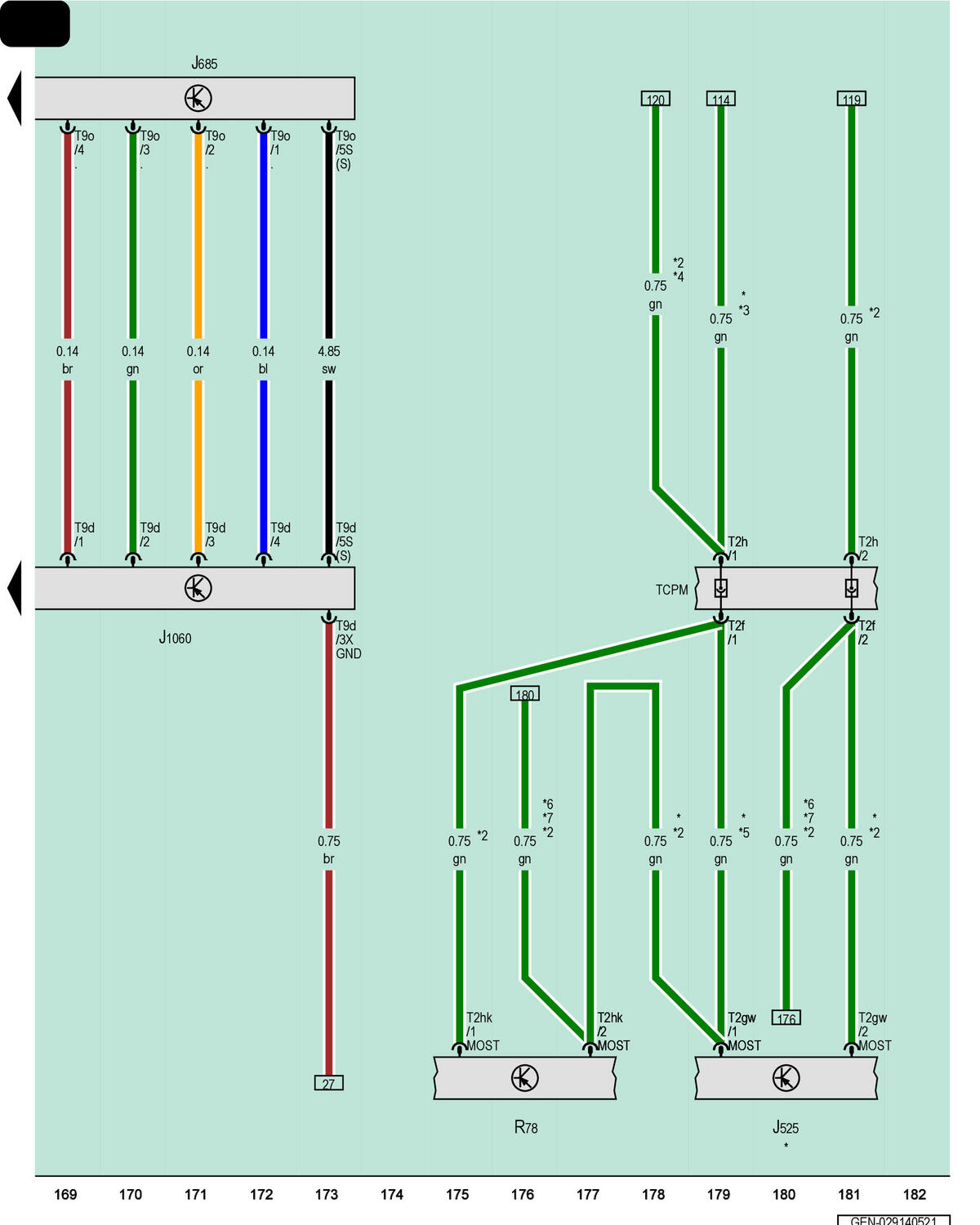

Digital Sound System Control Module, Front Information Display Control Head, Front Information Display Control Head 2, TV Tuner

Courtesy of AUDI OF AMERICA, LLC

J525

Digital Sound System Control Module

J685

Front Information Display Control Head

J1060

Front Information Display Control Head 2

R78

TV Tuner

T2f

2-Pin Connector, Black

T2gw

2-Pin Connector, Black

T2h

2-Pin Connector, Black

T2hk

2-Pin Connector, Black

T9d

9-Pin Connector, White

T9o

9-Pin Connector, White

TCPM

Coupling Point on Instrument Panel, Center

*

For Vehicles with Bang & Olufsen Sound System

*2

For Vehicles with TV Tuner

*3

For Vehicles with Windshield Projection

*4

For Vehicles Without Windshield Projection

*5

For Vehicles Without TV Tuner

*6

For Vehicles with Bose Sound System

*7

For Vehicles with Audi Sound System
