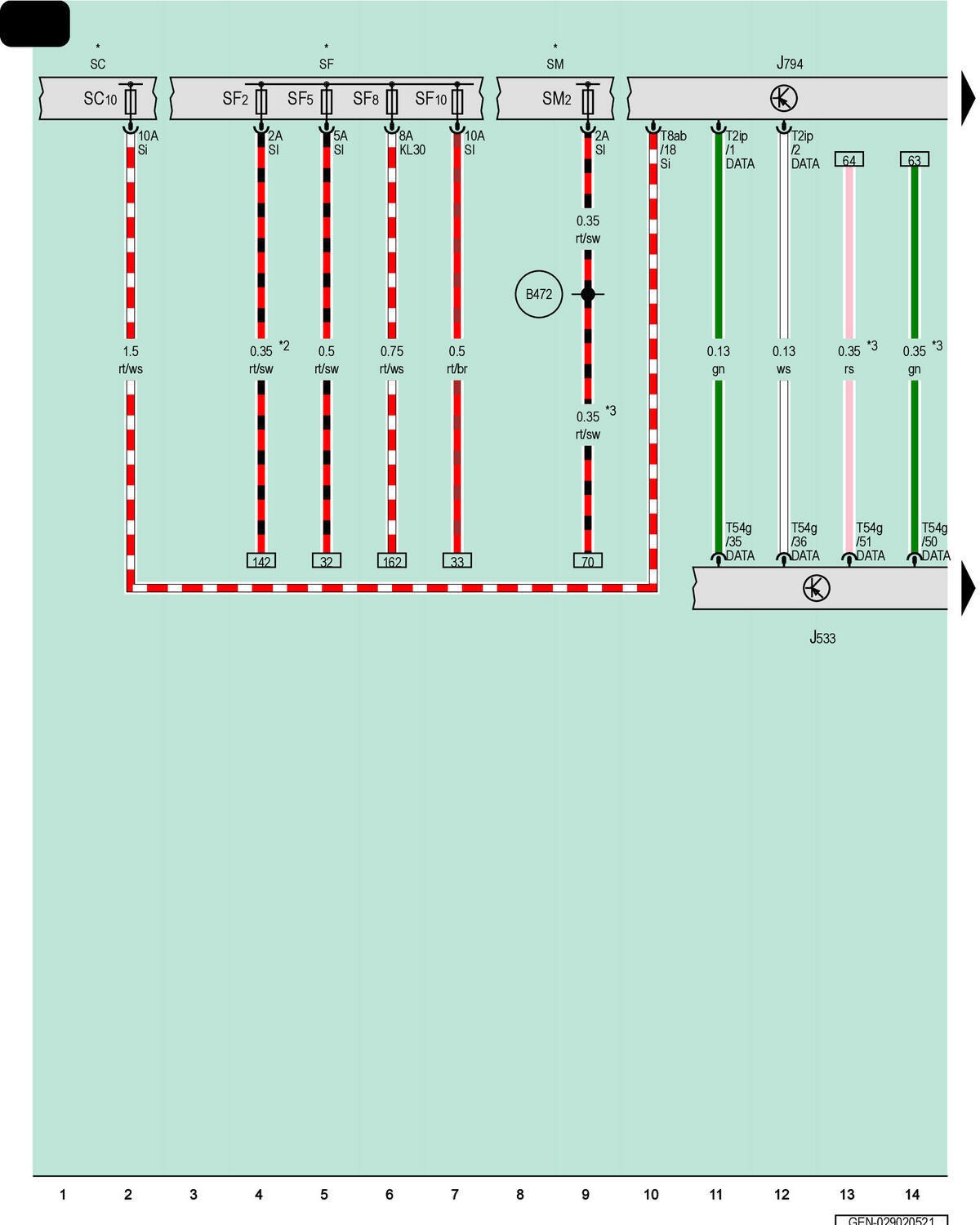

Data Bus On Board Diagnostic Interface, Information Electronics Control Module 1, Fuse Panel C, Fuse Panel F, Fuse Panel M

Courtesy of AUDI OF AMERICA, LLC

J533

Data Bus on Board Diagnostic Interface

J794

Information Electronics Control Module 1

SC

Fuse Panel C

SF

Fuse Panel F

SF2

Fuse 2 (On Fuse Panel F)

SF5

Fuse 5 (On Fuse Panel F)

SF8

Fuse 8 (On Fuse Panel F)

SF10

Fuse 10 (On Fuse Panel F)

SM

Fuse Panel M

SM2

Fuse 2 on Fuse Panel M

SC10

Fuse 10 (On Fuse Panel C)

T2ip

2-Pin Connector, Black

T8ab

8-Pin Connector, Black

T54g

54-Pin Connector, Gray

B472

Connection 8 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

For Vehicles with Japan Equipment

*3

Depending on Equipment
