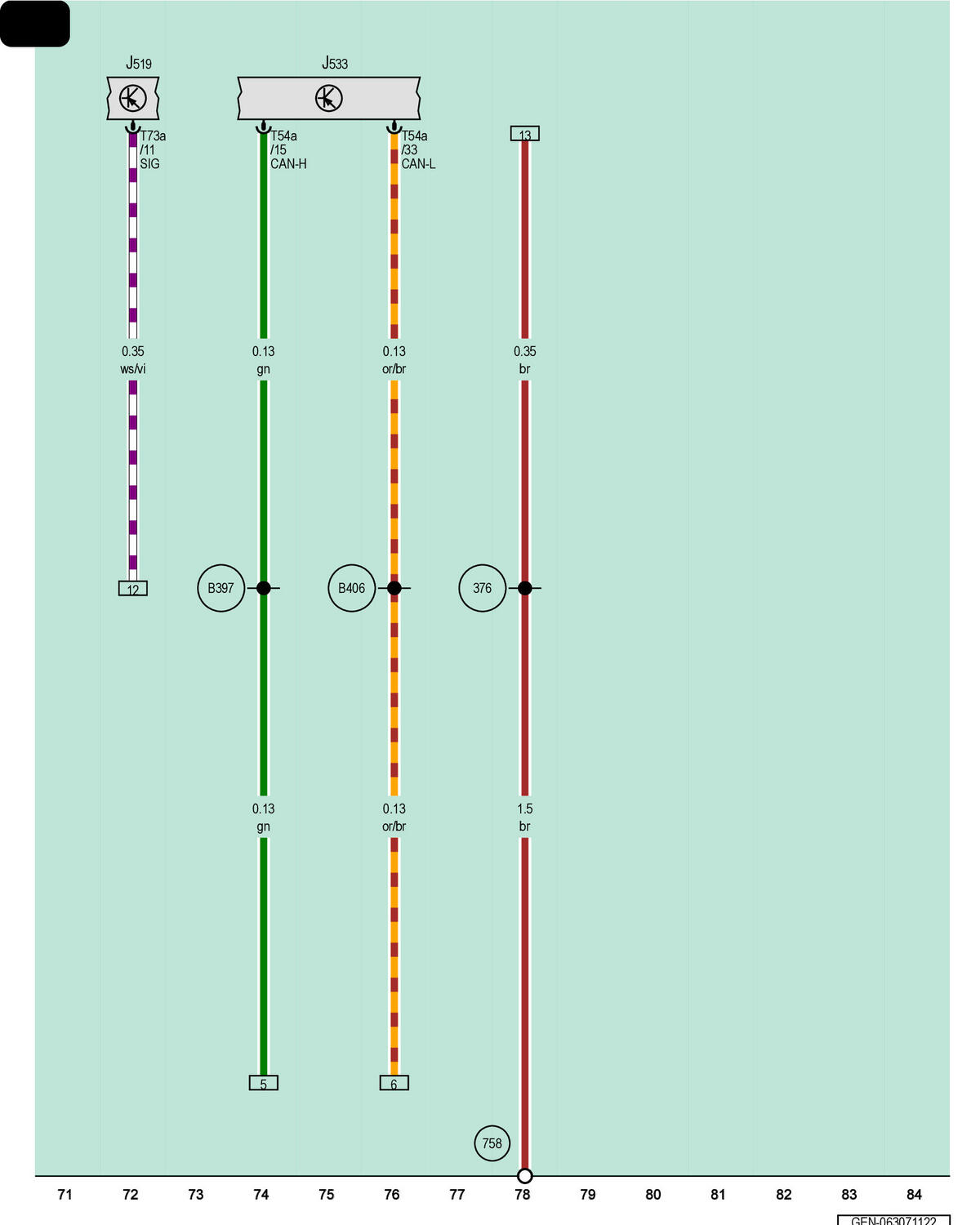

Vehicle Electrical System Control Module, Data Bus On Board Diagnostic Interface
J519
Vehicle Electrical System Control Module
J533
Data Bus on Board Diagnostic Interface
T54a
54-Pin Connector, Black
T73a
73-Pin Connector, Black
376
Ground Connection 11 (in Main Wiring Harness)
758
Ground Connection 3 on Center Tunnel
B397
Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)
B406
Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)
