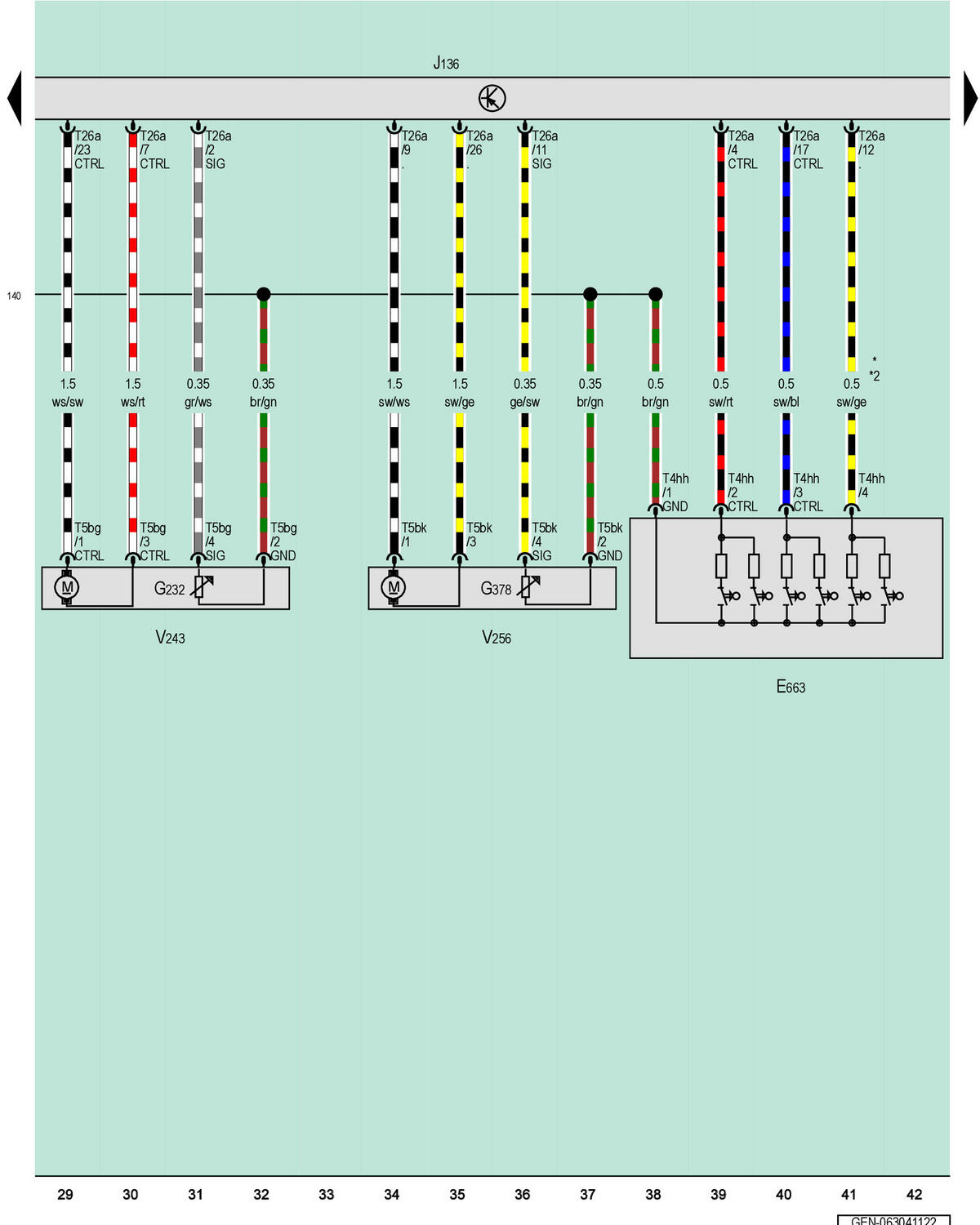

Driver Seat Switch Module, Memory Seat/Steering Column Adjustment Control Module, Driver Seat Angle Adjustment Motor, Driver Seat Depth Adjustment Motor
E663
Driver Seat Switch Module
G232
Driver Seat Tilt Adjustment Sensor
G378
Seat Depth Adjustment Sensor
J136
Memory Seat/Steering Column Adjustment Control Module
T4hh
4-Pin Connector, Black
T5bg
5-Pin Connector, Brown
T5bk
5-Pin Connector, Brown
T26a
26-Pin Connector, White
V243
Driver Seat Angle Adjustment Motor
V256
Driver Seat Depth Adjustment Motor
140
Ground Connection 2 (in Seat Adjustment Wiring Harness)
*
For Vehicles with Seat Ventilation
*2
For Seat Adjustment with Massage Function
