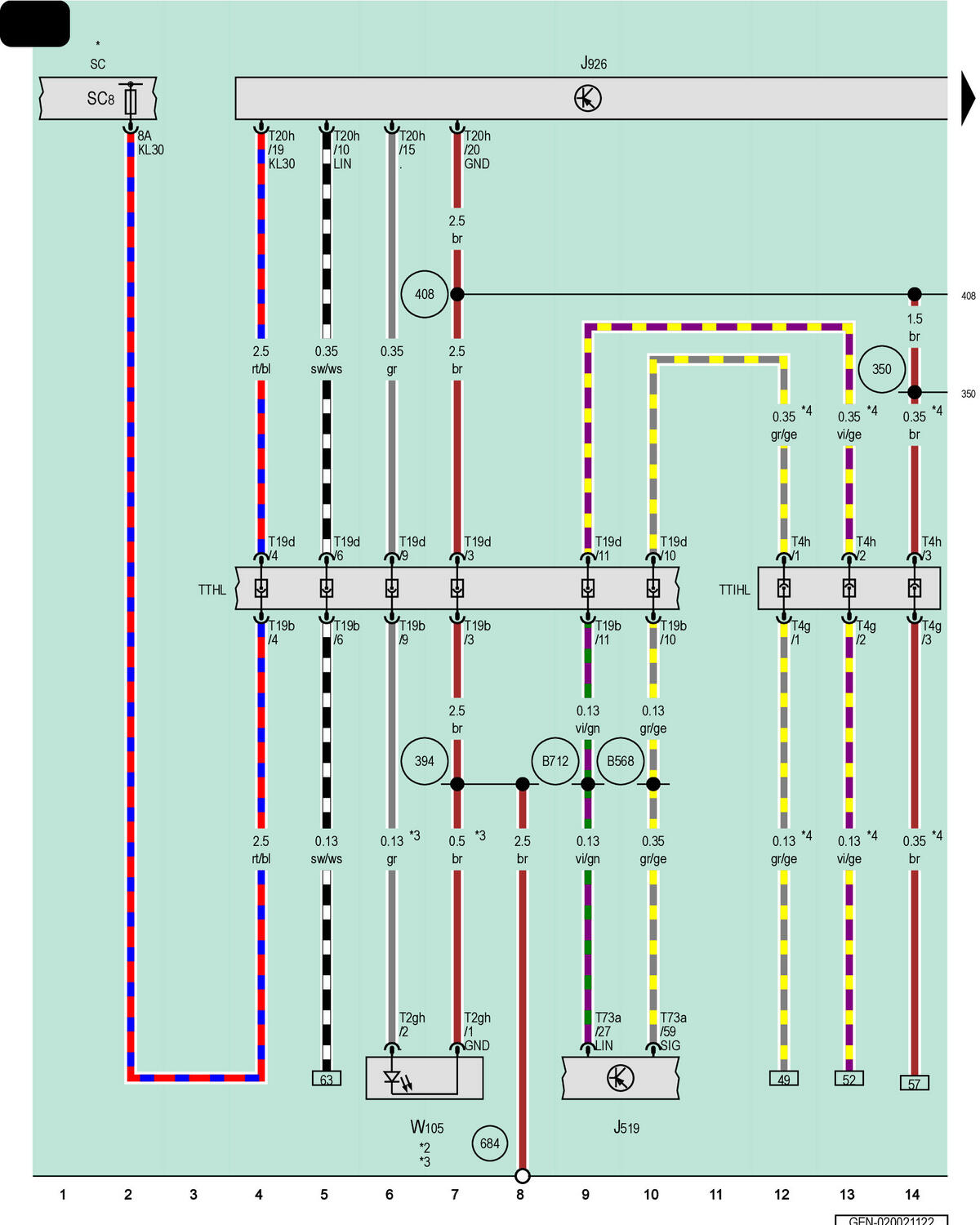

Vehicle Electrical System Control Module, Driver Side Rear Door Control Module, Driver Side Rear Side Sill Panel Strip Ambient Lighting Lamp
J519
Vehicle Electrical System Control Module
J926
Driver Side Rear Door Control Module
SC
Fuse Panel C
SC8
Fuse 8 (On Fuse Panel C)
T2gh
2-Pin Connector, Black
T4g
4-Pin Connector, Black
T4h
4-Pin Connector, Black
T19b
19-Pin Connector, Black
T19d
19-Pin Connector, Black
T20h
20-Pin Connector, White
T73a
73-Pin Connector, Black
TTHL
Left Rear Door Coupling Point
TTIHL
Coupling Point in Left Rear Door
W105
Driver Side Rear Side Sill Panel Strip Ambient Lighting Lamp
350
Ground Connection 2 (in Left Rear Door Wiring Harness)
394
Ground Connection 29 (in Main Wiring Harness)
408
Ground Connection 3 (in Left Rear Door Wiring Harness)
684
Ground Connection on Left Front Side Member
B568
Connection 35 (in Main Wiring Harness)
B712
LIN Bus Connection 7 (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
Pre-Wired Component
*3
For Vehicles with Ambient Lighting, Version 1
*4
For Vehicles with Ambient Lighting, Version 2
