Cellular Telephone Amplifier, Roof Antenna

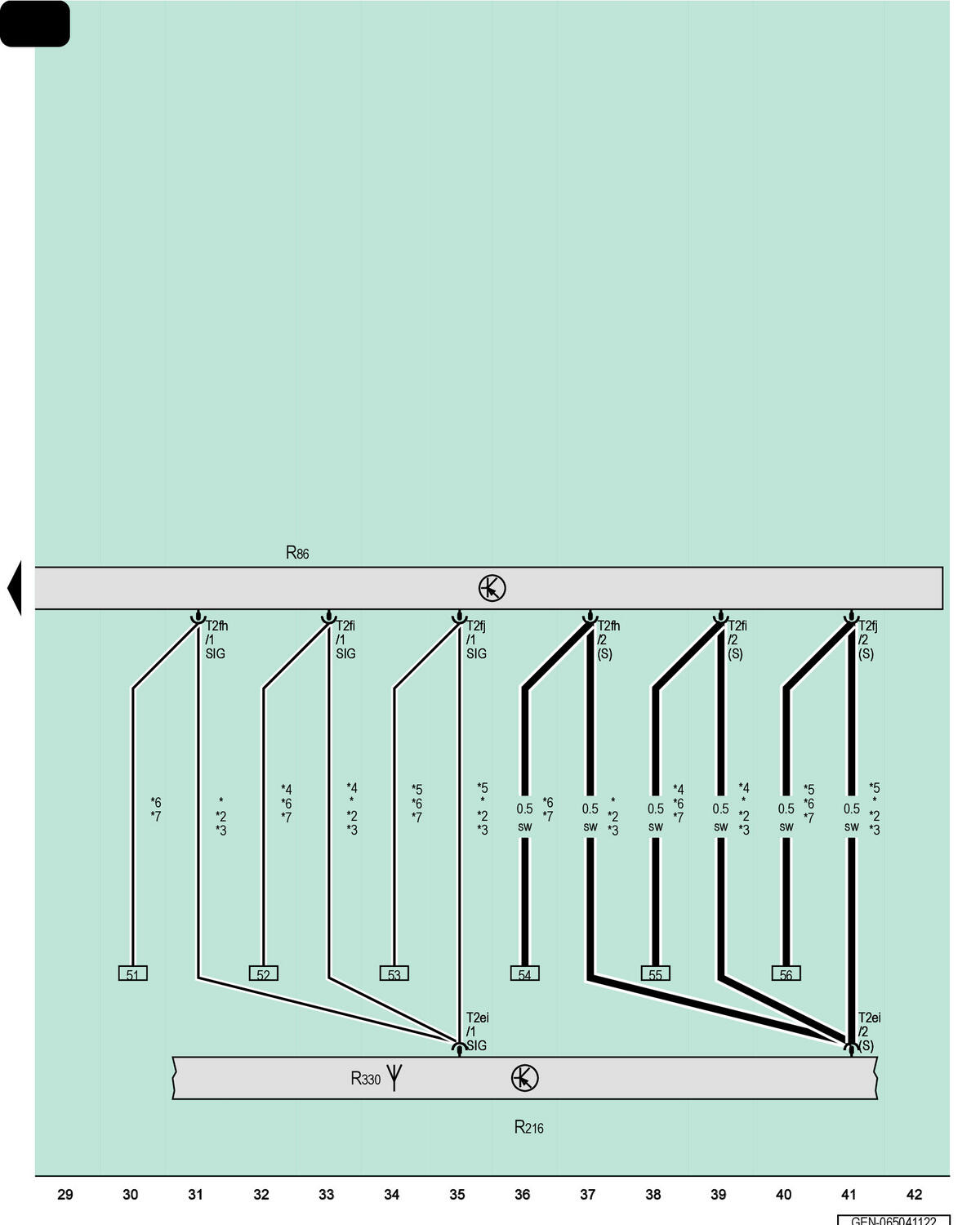

GWWGEN-065041122Courtesy of AUDI OF AMERICA, LLC

R86

Cellular Telephone Amplifier

R216

Roof Antenna

R330

LTE Antenna 3

T2ei

2-Pin Connector, Purple

T2fh

2-Pin Connector, Purple

T2fi

2-Pin Connector, Naturally Cloudy

T2fj

2-Pin Connector, Yellow

*

For Vehicles without Mobile Online Services

*2

For Vehicles Without Emergency Call Module

*3

Through June 2020

*4

For USA Only

*5

For Vehicles with China Equipment

*6

For Vehicles with Mobile Online Services

*7

For Vehicles with Emergency Call Module
