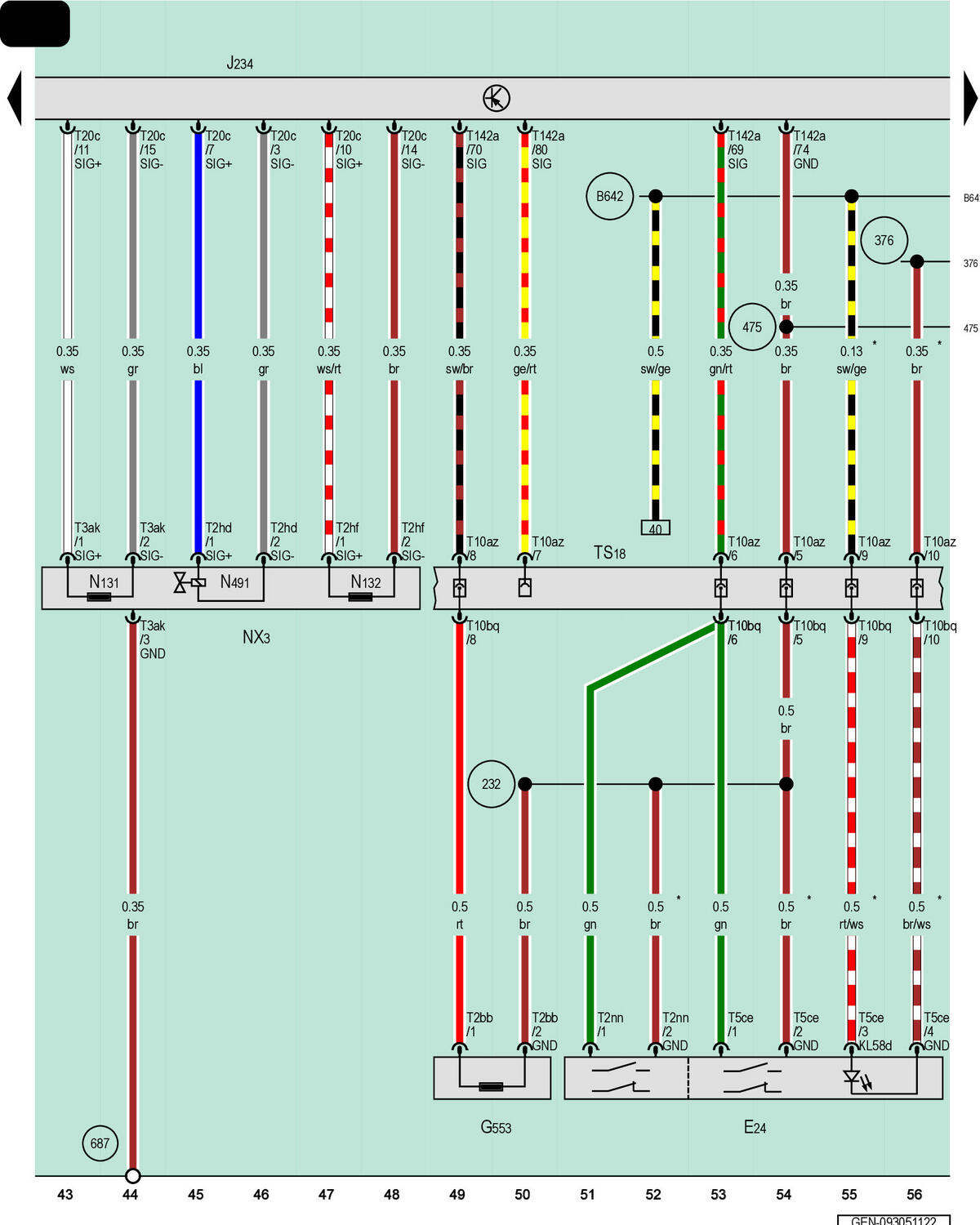

Driver Seat Belt Switch, Driver Seat Position Sensor, Airbag Control Module, Front Passenger Airbag Unit
E24
Driver Seat Belt Switch
G553
Driver Seat Position Sensor
J234
Airbag Control Module
NX3
Front Passenger Airbag Unit
N131
Front Passenger Airbag Igniter 1
N132
Front Passenger Airbag Igniter 2
N491
Front Passenger Airbag Release Valve Igniter
T2bb
2-Pin Connector
T2hd
2-Pin Connector, Yellow
T2hf
2-Pin Connector, Yellow
T2nn
2-Pin Connector, Black
T3ak
3-Pin Connector, Yellow
T5ce
5-Pin Connector, Black
T10az
10-Pin Connector, Black
T10bq
10-Pin Connector, Black
T20c
20-Pin Connector, Yellow
T142a
142-Pin Connector, Yellow
TS18
Driver Seat Coupling Point
232
Ground Connection (in Seat Belt Warning Wiring Harness)
376
Ground Connection 11 (in Main Wiring Harness)
475
Airbag Ground Connection (in Main Wiring Harness)
687
Ground Connection 1 on Center Tunnel
B642
Positive Connection (58) (in Main Wiring Harness)
*
Optional Equipment
