Warning Label, Checking

Procedure

• A warning label is located on all high-voltage components.
• For maintenance work pay attention that this warning label is not damaged or dirty and all high-voltage components are present.

Condition

• Replace the warning label if necessary.

Warning labels are on the following assembly groups:

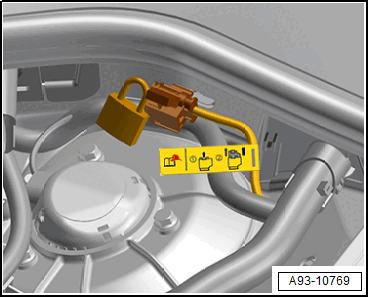

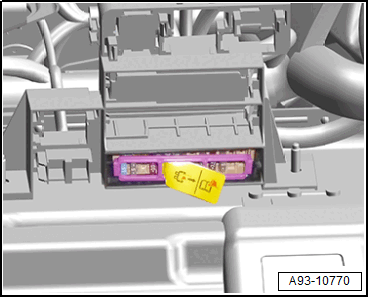

• Rescue tag at the front of the motor compartment on the left side in front of the plenum chamber

  Courtesy of AUDI OF AMERICA, LLC

• Rescue tag in the vehicle interior behind the service cover of the left luggage compartment side trim panel

  Courtesy of AUDI OF AMERICA, LLC

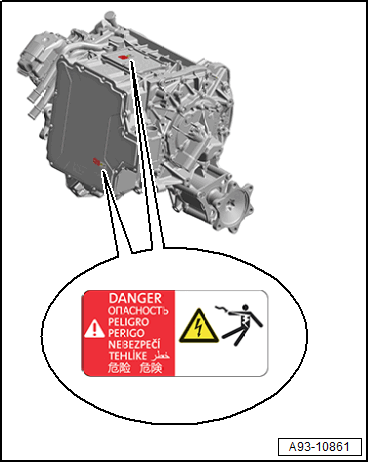

• Front Axle Electric Drive Motor -V662-

  Courtesy of AUDI OF AMERICA, LLC

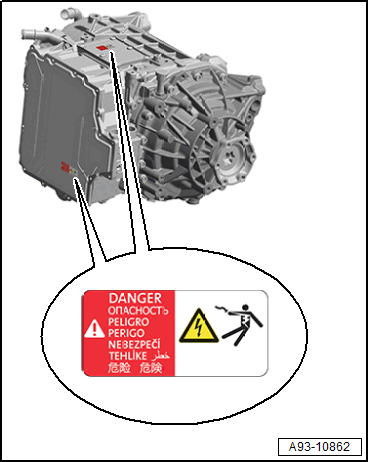

• Rear Axle Electric Drive Motor -V663- /Rear Axle Electric Drive Motor 2 -V648- (shown on the Rear Axle Electric Drive Motor -V663-)

  Courtesy of AUDI OF AMERICA, LLC

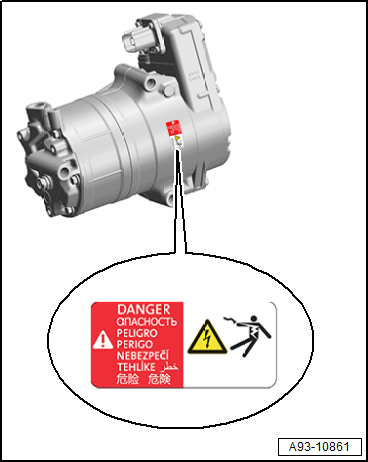

• Electrical A/C Compressor -V470-

  Courtesy of AUDI OF AMERICA, LLC

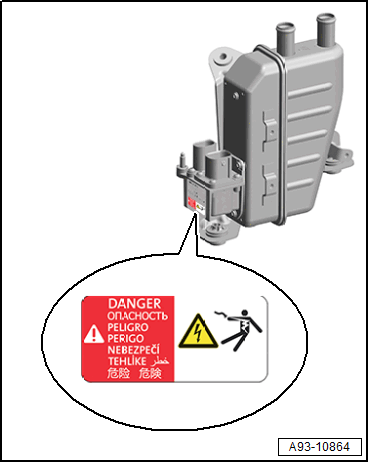

• High-Voltage Heater (PTC) -Z115- and High-Voltage Heater 2 (PTC) -Z190-

  Courtesy of AUDI OF AMERICA, LLC

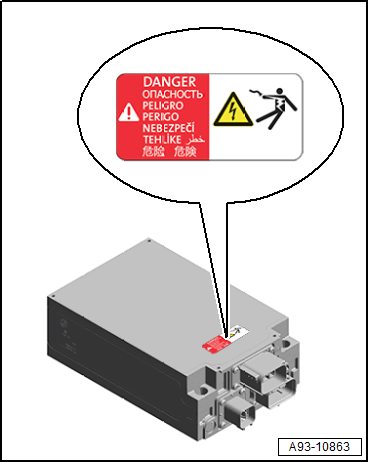

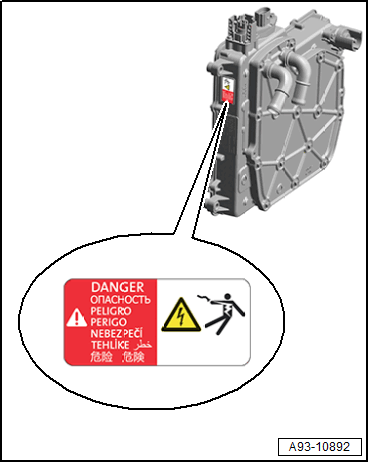

• High-Voltage Battery Charger 1 -AX4-

  Courtesy of AUDI OF AMERICA, LLC

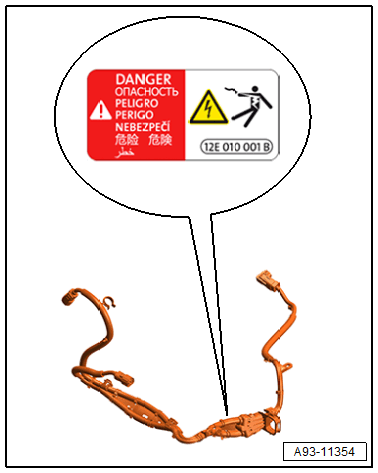

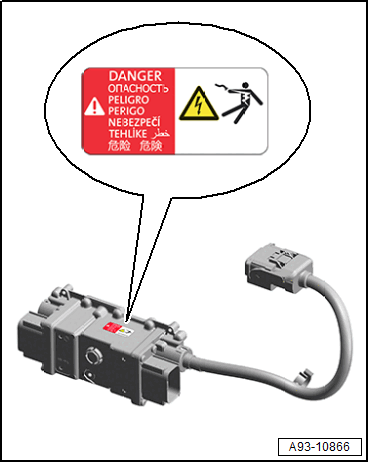

• High-voltage cable, charger and High-Voltage Heater (PTC) -Z115-, High-voltage battery 115 kWh

  Courtesy of AUDI OF AMERICA, LLC

• High-Voltage Battery Charger 2 -AX5-

  Courtesy of AUDI OF AMERICA, LLC

• High-Voltage Charge Network Distributor -SX4-

  Courtesy of AUDI OF AMERICA, LLC

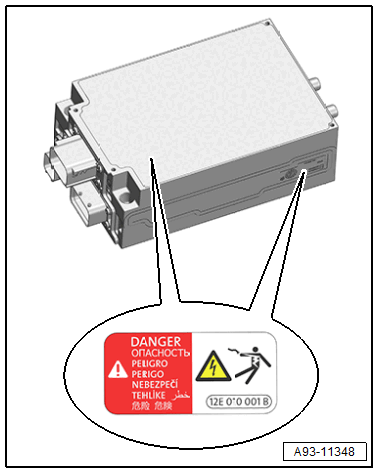

• Voltage Converter -A19-

  Courtesy of AUDI OF AMERICA, LLC

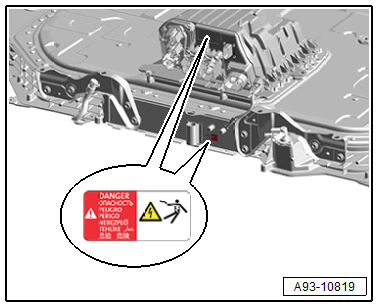

• High-Voltage Battery 1 -AX2- front with High-Voltage Battery Control Module -SX6-

  Courtesy of AUDI OF AMERICA, LLC

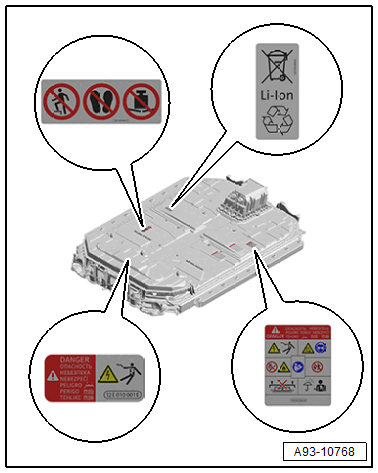

• High-Voltage Battery 1 -AX2- top, 71 kWh

  Courtesy of AUDI OF AMERICA, LLC

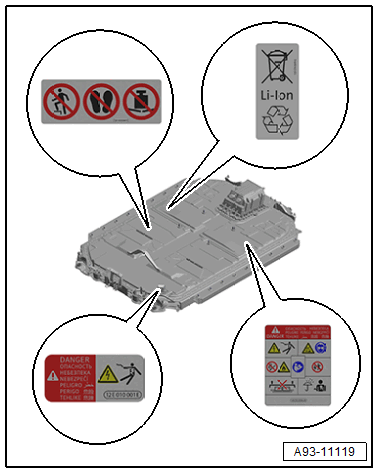

• High-Voltage Battery 1 -AX2- top, 95 kWh / 115 kWh

  Courtesy of AUDI OF AMERICA, LLC
