Electric Drive Control Module On Rear Axle J1235, Removing And Installing, Base Model: Installing

Install in reverse order of removal and note the following:

Condition

• Replace the sealing element.
• Replace the coolant connection with O-rings.
• Replace the cover for the high-voltage cables.
• Always replace a removed clip for noise insulation on the motor.

-- Coat the O-rings for the coolant connections with coolant and insert them into the motor until they stop.

-- Connect the sealing element for installation to the electric drive control module.

-- Attach the electric drive control module onto the motor and tighten the bolts.

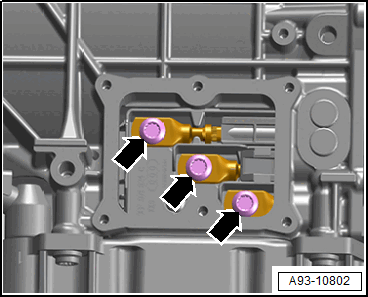

-- Tighten the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Install the new high-voltage cables cap and tighten the bolts -1- through -6-.

Fig 1: Bolts for High-Voltage Cable Cover - Tightening Specification and Sequence

Courtesy of AUDI OF AMERICA, LLC

If the Electric Drive Control Module on Rear Axle -J1235- was replaced, the test plan for replacing the control module must be completed.

-- Complete the "Control module, replacing" function with the Vehicle Diagnostic Tester . Refer to Diagnostic Entries .
