Overview - Driving/Motor Sound

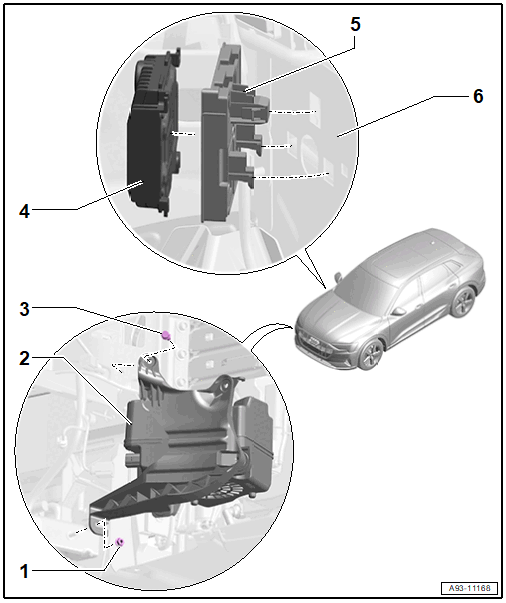

GWWA93-11168

Courtesy of AUDI OF AMERICA, LLC

Nut
- 4.5 Nm
Engine Sound Generator Actuator 1 -R257-
- Component location: on the right longitudinal member
- Refer to Engine Sound Generator Actuator 1 R257, Removing and Installing .
Bolt
- Quantity: 2
- 4.5 Nm
Engine Sound Generator Control Module -J943-
- Refer to Engine Sound Generator Control Module J943, Removing and Installing .
Bracket
A-Pillar
