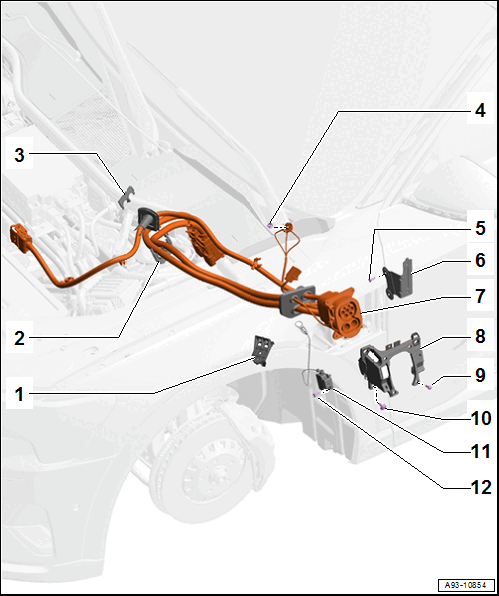

Overview - Charging Socket

The overview is given for a left-hand drive vehicle as an example. For right-hand drive vehicles the layout is a mirror image.

Courtesy of AUDI OF AMERICA, LLC

1. Bracket
   • For high-voltage cables
2. Pass-Through-Lower Section
3. Pass-Through-Upper Section
4. Nut
   • Refer to COMPONENT LOCATION OVERVIEW - POTENTIAL EQUALIZATION CABLE  .
5. Bolt
   • Quantity: 2
   • 8 Nm
6. Bracket
7. High-Voltage Battery Charging Socket 1 -UX4-
   • Refer to High-Voltage Battery Charging Socket 1 UX4, Removing and Installing  .
8. Mount
9. Bolt
   • Quantity: 4
   • 9 Nm
10. Bolt
    • Quantity: 4
    • 9 Nm
11. High-Voltage Charging Connector Lock 1 Adjuster -F498-
    • Refer to HIGH-VOLTAGE CHARGING CONNECTOR LOCK 1 AND 2 ADJUSTER F498/F499, REMOVING AND INSTALLING
12. Bolt
    • Quantity: 2
    • 0.8 Nm
