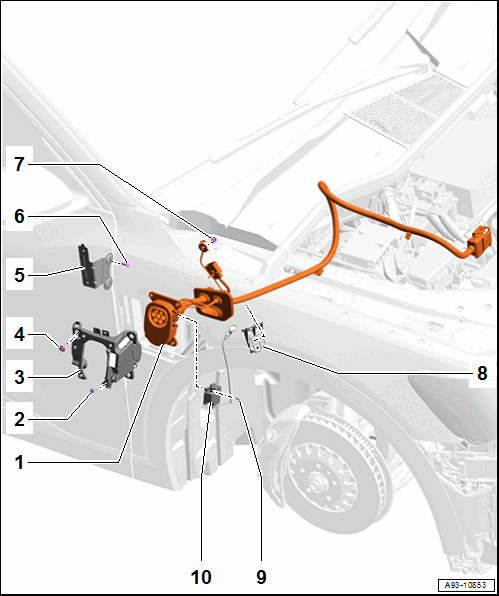

Overview - Charging Socket 2

The overview is given for a left-hand drive vehicle as an example. For right-hand drive vehicles the layout is a mirror image.

Courtesy of AUDI OF AMERICA, LLC

1. High-Voltage Battery Charging Socket 2 -UX5-
   • Equipped on some models
   • Refer to High-Voltage Battery Charging Socket 2 UX5, Removing and Installing  .
2. Bolt
   • Quantity: 4
   • 9 Nm
3. Mount
4. Bolt
   • Quantity: 4
   • 9 Nm
5. Bracket
6. Bolt
   • Quantity: 2
   • 8 Nm
7. Nut
   • Refer to COMPONENT LOCATION OVERVIEW - POTENTIAL EQUALIZATION CABLE  .
8. Bracket
   • For high-voltage cable
9. Bolt
   • Quantity: 2
   • 0.8 Nm
10. High-Voltage Charging Connector Lock 2 Adjuster -F499-
    • Refer to HIGH-VOLTAGE CHARGING CONNECTOR LOCK 1 AND 2 ADJUSTER F498/F499, REMOVING AND INSTALLING
