Rear Display And Control Head, Removing And Installing: Removing

-- Remove the center console rear trim. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .

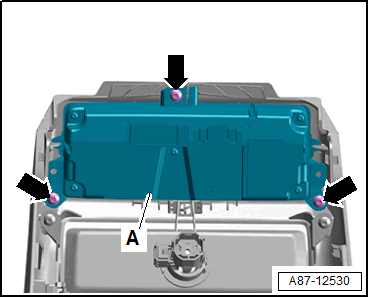

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Rear A/C Display Control Head -E265- -A-.
