Overview - Fragrance System

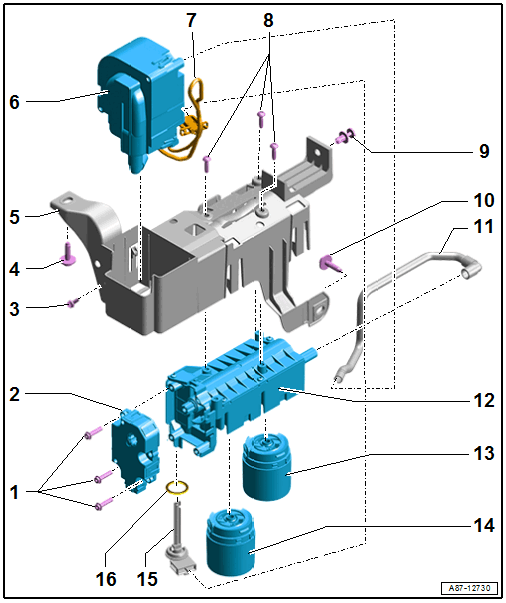

GWWA87-12730Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 1.5 Nm
  2. Fragrance Diffuser System Actuator -V687-
  3. Bolt
    • 1.5 Nm
    • Only for the service, if the retainer is faulty. Refer to the Parts Information.
  4. Bolt
    • 3 Nm
  5. Bracket
  6. Air Freshening System Control Module -J1101- with Fragrance Diffuser System Blower -V686-
  7. Wiring Harness
  8. Bolts
    • 1.5 Nm
    • Quantity: 3
    • Only for the service, if the retainer is faulty. Refer to the Parts Information.
  9. Expanding Clip
  10. Bolt
    • 3 Nm
  11. Hose
  12. Fragrance System Functional Unit -GX43-
  13. Container with Fragrance 2 --
    • Removing and Installing. Refer to 530.
    • There are different versions. Refer to the Parts Information.
  14. Container with Fragrance 1 --
    • Removing and Installing. Refer to 530.
    • There are different versions. Refer to the Parts Information.
  15. Fragrance Diffuser System Temperature Sensor -G1056-
  16. Seal
    • Check before installing the Fragrance Diffuser System Temperature Sensor -G1056-
