Ionizer Control Module -J897- BRACKET, REMOVING AND INSTALLING

Removing

-- Remove the Ionizer Control Module -J897-. Refer to Ionizer Control Module -J897-, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

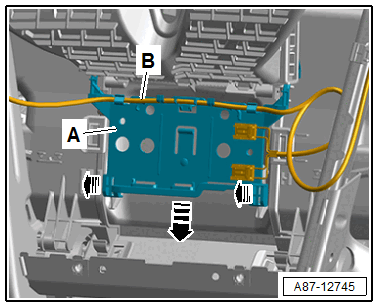

-- Free up the wire -B-.

-- Remove the bracket -A- from the clamps and remove upward.
