Fragrance System Hoses, Removing And Installing
Remove the hose from the function unit to the left air duct
-- Refer to Fragrance System Functional Unit -GX43-, REMOVING AND INSTALLING

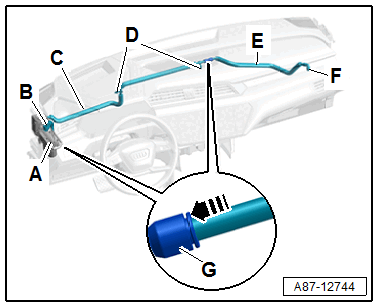

-- Remove the hose from the connector coupling on the left air duct, to do so press the pull release -B- in the connector coupling in direction of -arrow-.
Hose to Right Air Duct, Removing
-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
-- Equipped on some models: remove the windshield projection head up display control module. Refer to WINDSHIELD PROJECTION HEAD UP DISPLAY CONTROL MODULE, REMOVING AND INSTALLING .
-- Remove the expanding rivet -D-.
-- Remove the hoses -C and E- from the connector coupling -G- by pushing the pull release into the connector coupling -arrow-.
-- Guide out the hose carefully and remove.
Installing
Install in the reverse order of removal while noting the following:
- Push the connector couplings and hoses together all the way.
