Driver Side Ionizer - J1105-, REMOVING AND INSTALLING: Removing
-- Remove the Fragrance System Functional Unit -GX43-. Refer to Fragrance System Functional Unit -GX43-, REMOVING AND INSTALLING .

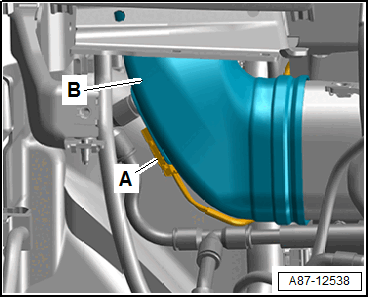

-- Turn the ionizer -A- clockwise and remove from the air duct -B-.
-- Label the allocation of wires to the connector housing for reinstallation.
-- Release the catches and open the doors -B and D- on the connector housing -C-.
-- Using the Release Tool Set :VAS1978 , remove the pins from the connector housing. Refer to CONNECTOR HOUSINGS, RELEASING AND DISASSEMBLING .
