Air Freshening System Control Module -J1101- WITH Fragrance Diffuser System Blower -V686-, REMOVING AND INSTALLING: Removing

Courtesy of AUDI OF AMERICA, LLC

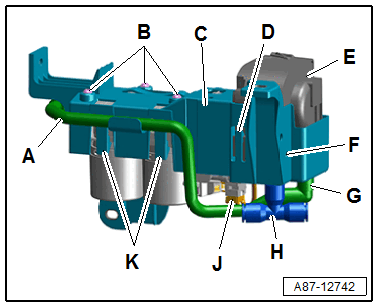

-- Remove the Fragrance System Functional Unit -GX43-, but do not disconnect it from the bracket. Refer to Fragrance System Functional Unit -GX43-, REMOVING AND INSTALLING .

-- Disconnect the connector -J-.

-- Remove the hose -G- from the Air Freshening System Control Module -J1101- -E-.

-- If equipped, remove the bolt -F-.

-- Remove the hose coupling -H- from the control module.

-- Release the catch -D- and remove the Air Freshening System Control Module -J1101- -E-.
