A/C System Particulate Matter Concentration Sensor -G930-, REMOVING AND INSTALLING: Removing

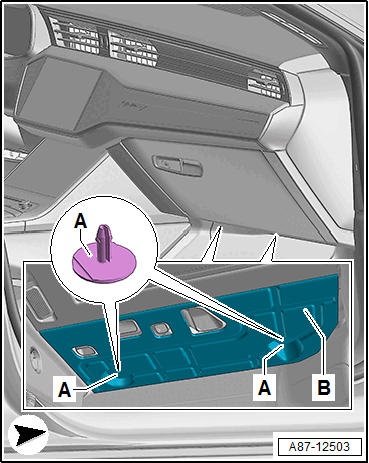

Courtesy of AUDI OF AMERICA, LLC

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

-- Remove the fastening plug -A-.

-- Remove the front passenger side fuse panel cover.

-- Loosen the insulation -B- from the heater and A/C unit air intake housing and remove.

-- Disconnect the connector -C-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -A-.

-- Release the retainers -B- and move the sensor -D- to the side.

-- Release the retainer in direction of -arrow- and disengage the connection -E-.

-- Remove the sensor -D-.
