Vehicle Interior Forced Air Extraction, Checking

• The vent opening -B- may not be sealed or covered; otherwise, it may cause problems in the vehicle interior ventilation.

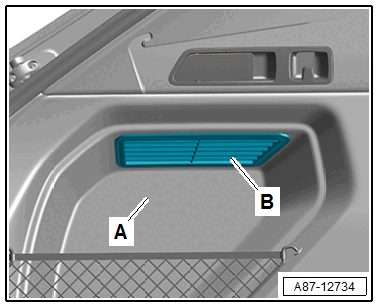

  Courtesy of AUDI OF AMERICA, LLC

-- Unclip the luggage compartment side trim panel cover and check the vent opening -B- for flow.

-- If necessary, remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

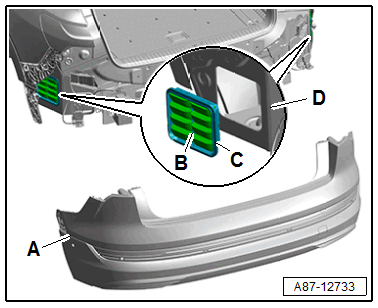

-- Check the left and right vent frame -B- for flow.

Courtesy of AUDI OF AMERICA, LLC

• The sealing lips in the ventilation frame must be free to move and close.
• The vent frame must be installed on the correct side.
• The vent frame must not be covered.
