Rear Air Duct, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

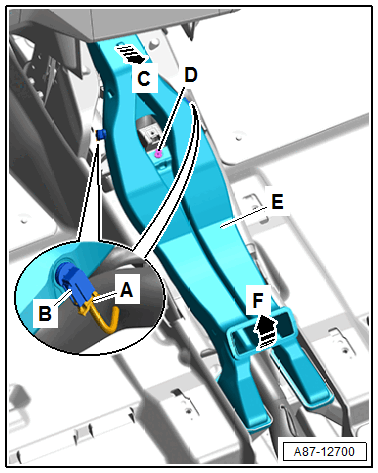

-- On vehicles with High A/C system (PR number 9AQ): disconnect the connectors -A-.

-- Remove the expanding clip -D-.

-- Pivot the rear air duct -C- upward in direction of -arrow F- and remove it from the catch on the air distribution housing in direction of -arrow C-.

-- Remove the rear air duct.
