Plenum Chamber Water Drain, Checking

Procedure

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

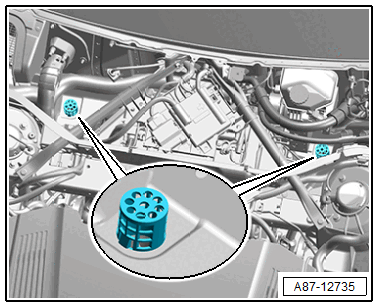

-- Check the plenum chamber and water drains for debris.

GWWA87-12735Courtesy of AUDI OF AMERICA, LLC

-- Check the water drains and their valves are not obstructed.

-- Check the plenum chamber cover for damage and then for correct installation.
