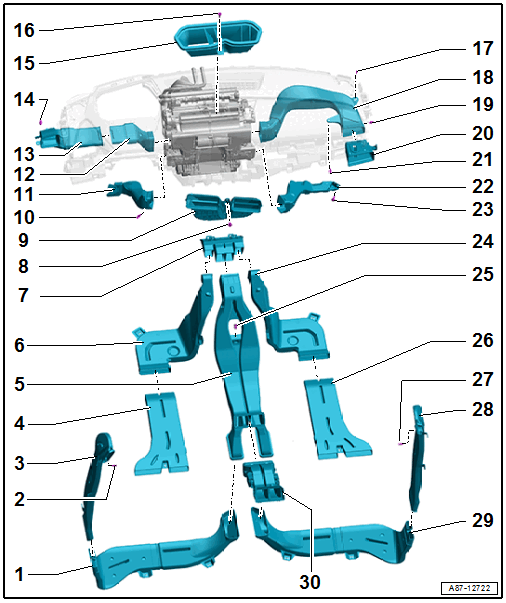

Overview - Air Routing And Air Distribution In Vehicle Interior

Courtesy of AUDI OF AMERICA, LLC

1. Air Guide to Air Duct in Left B-Pillar
2. Expanding Rivet
3. Air Duct in the Left B-Pillar
4. Left Passenger Compartment Footwell Vent
5. Rear Air Duct
   • Removing and Installing. Refer to REAR AIR DUCT, REMOVING AND INSTALLING .
6. Left Air Duct to Passenger Compartment Footwell Vent
7. Air Duct
8. Bolt
   • 3 Nm
9. Air Duct to Center Instrument Panel Vents
   • Removing and Installing. Refer to AIR DUCT FOR CENTER INSTRUMENT PANEL VENTS, REMOVING AND INSTALLING .
10. Expanding Rivet
11. Left Front Footwell Vent
    • Removing and Installing. Refer to DRIVER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .
12. Left Air Duct
13. Outer Left Air Duct
    • There are different versions. Refer to the Parts Information.
    • Equipped on some models with Driver Side Ionizer -J1105-. Refer to COMPONENT LOCATION OVERVIEW - AIR IONIZATION  for the component location overview.
    • Remove the instrument panel to remove. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
14. Expanding Rivet
15. Air Duct for Air Vent Defrost
    • Removing and Installing. Refer to DEFROST FUNCTION VENT AIR DUCT, REMOVING AND INSTALLING .
16. Guide Pin
17. Expanding Rivet
18. Right Air Duct Channel
    • Remove the instrument panel to remove. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
19. Expanding Rivet
20. Outer Right Air Duct
    • There are different versions. Refer to the Parts Information.
    • Equipment versions with Front Passenger Side Ionizer -J1106-. Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - AIR IONIZATION .
    • To remove, remove the glove compartment (refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING ) and remove the front passenger side instrument panel (refer to OUTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING ).
21. Expanding Rivet
22. Right Front Footwell Vent
    • Removing and Installing. Refer to FRONT PASSENGER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .
23. Bolt
    • 2 Nm
    • Only for the service, if the retainer is faulty. Refer to the Parts Information.
24. Right Air Duct To Passenger Compartment Footwell Vent
25. Expanding Rivet
26. Right Passenger Compartment Footwell Vent
27. Expanding Rivet
28. Right B-Pillar Air Duct
29. Air Guide to Air Duct in Right B-Pillar
30. Air Duct for Rear Vent
    • Removing and Installing. Refer to REAR VENT AIR DUCT, REMOVING AND INSTALLING .
