Front Passenger Side FOOTWELL Vent, Removing And Installing: Installing

Courtesy of AUDI OF AMERICA, LLC

Install in the reverse order of removal while noting the following:

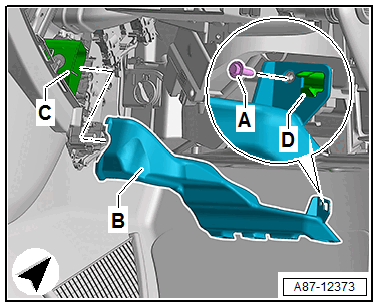

-- Check the footwell vent -B- and heater and A/C unit -C- for damage. Damaged or improperly joined connections can result in noises during operation.

-- The footwell vent -B- with the catch -D- cannot be secured sufficiently, then the bolt -A- can be installed in service. Refer to Parts Information.
