Fresh Air Intake Cover, Removing And Installing: Removing

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

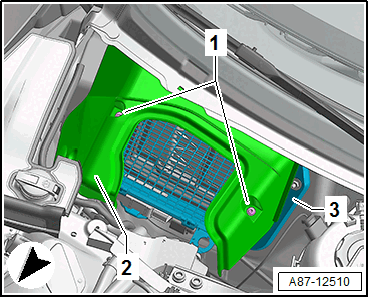

-- Remove the expanding rivets -1-.

GWWA87-12510Courtesy of AUDI OF AMERICA, LLC

-- Pivot the cover for the fresh air intake -2- upward and remove from the fresh air intake -3-.
