Driver Side FOOTWELL Vent, Removing And Installing: Removing

-- Switch of the function "parking heater" (deactivate). Refer to the Owner's Manual.

-- Switch the ignition off.

-- Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

Vehicles with Knee Airbag

-- Remove the knee airbag. Refer to KNEE AIRBAG WITH IGNITER, REMOVING AND INSTALLING .

Continuation for All Vehicles

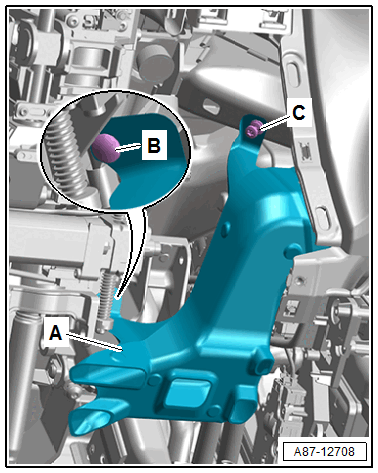

-- Remove the expanding rivets -B and C-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the footwell vent -A- from the heater and A/C unit.
