Defrost Function Vent Air Duct, Removing And Installing: Removing

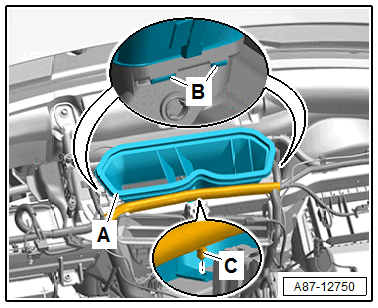

GWWA87-12750Courtesy of AUDI OF AMERICA, LLC

-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

-- Loosen the wiring harness -C- on the air duct -A-.

-- Release the catches -B- and remove the air duct -A-.
