Air Guide For Glove Compartment Cooling, Removing And Installing: Removing
-- Remove the footwell vent on the front passenger side. Refer to FRONT PASSENGER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .
-- Loosen the air duct from the air intake housing and remove.

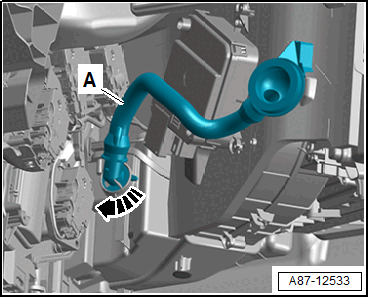

-- Loosen the glove compartment cooling air duct -A- and loosen from the heater and A/C unit by turning clockwise -arrow-.
