Air Duct For Center Instrument Panel Vents, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

-- If equipped, remove the Ionizer Control Module -J897-. Refer to Ionizer Control Module -J897-, REMOVING AND INSTALLING .

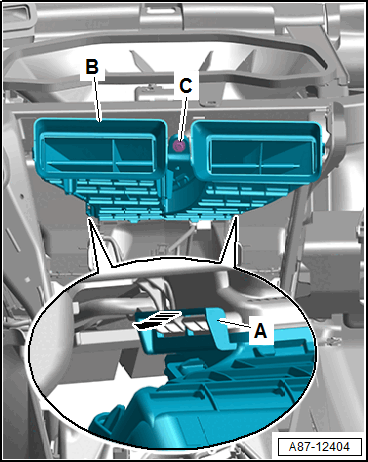

-- Remove the bolt -C-.

-- Release the retainers -A- and remove the air duct -B-.
