Thermal Management Control Module -J1024-, REMOVING AND INSTALLING: Removing

-- Switch the ignition off.

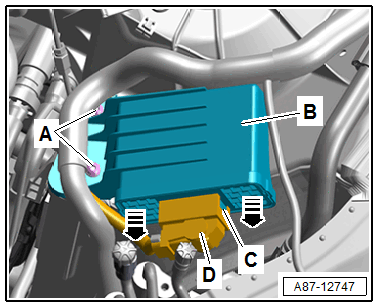

-- Release and disconnect the connector -D-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -A- and remove the Thermal Management Control Module -J1024- -C- with the bracket.

-- Loosen the catch in direction of -arrows- and remove the Thermal Management Control Module -J1024- -C- from the bracket -B-.
