Outside Air Temperature Sensor -G17-, REMOVING AND INSTALLING: Removing

e-tron

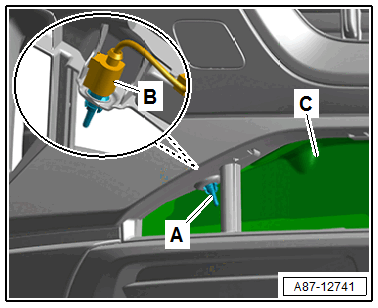

-- Remove the Outside Air Temperature Sensor -G17- -A- from the bracket.

Courtesy of AUDI OF AMERICA, LLC

-- If necessary, push the air duct -C- slightly toward the rear.

-- Disconnect the connector -B-.

Q8 e-tron

-- Remove the windshield washer fluid reservoir. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .

-- Remove the Outside Air Temperature Sensor -G17- -A- from the bracket.

Courtesy of AUDI OF AMERICA, LLC

-- Pull the air guide -C- toward the rear and guide out the temperature sensor -A- upward.

-- Disconnect the connector -B-.
