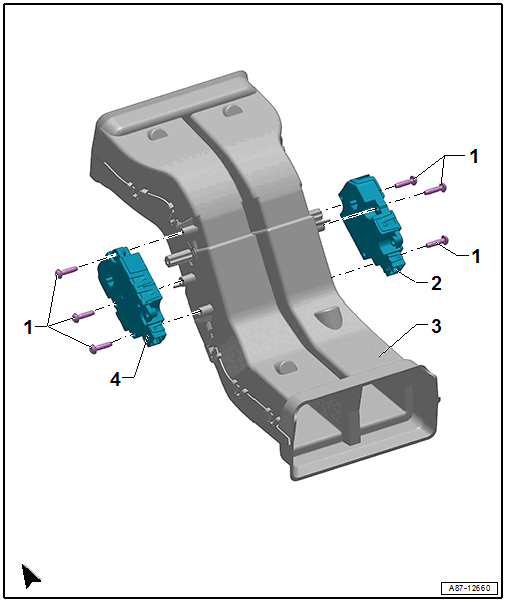

Overview - Rear Actuators
- Bolt
- 1.5 Nm
- Right B-Pillar/Footwell Shut-Off Door Motor -V211-
- Removing and Installing. Refer to Right B-Pillar/Footwell Shut-Off Door Motor -V211- /Left B-Pillar/Footwell Shut-Off Door Motor -V212-, REMOVING AND INSTALLING .
- Air Duct for Rear Vent
- Removing and Installing. Refer to REAR VENT AIR DUCT, REMOVING AND INSTALLING .
- Left B-Pillar/Footwell Shut-Off Door Motor -V212-
- Removing and Installing. Refer to Right B-Pillar/Footwell Shut-Off Door Motor -V211- /Left B-Pillar/Footwell Shut-Off Door Motor -V212-, REMOVING AND INSTALLING .
