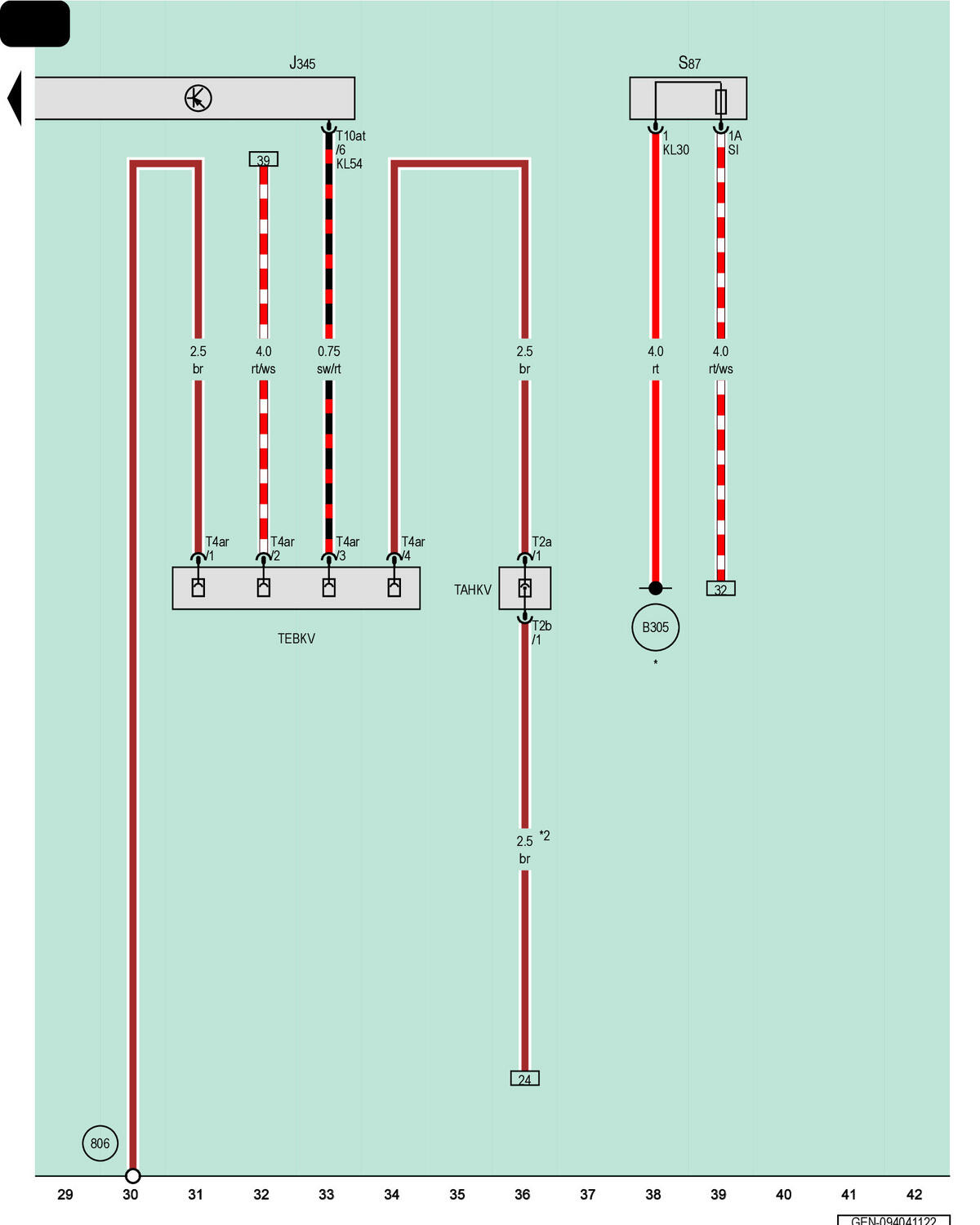

Towing Recognition Control Module

Courtesy of AUDI OF AMERICA, LLC

J345

Towing Recognition Control Module

S87

Trailer Circuit Breaker

T2a

2-Pin Connector, Black

T2b

2-Pin Connector, Black

T4ar

4-Pin Connector, Black

T10at

10-Pin Connector, Black

TAHKV

Electric Trailer Brake Coupling Point

TEBKV

Electromechanical Brake Booster Coupling Point, In the Wiring Harness, Near the A-Pillar, On the Diagnostic Connector

806

Ground Connection 4 on Center Tunnel

B305

Positive Connection 9 (30) (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

Not Included in the Preparation
