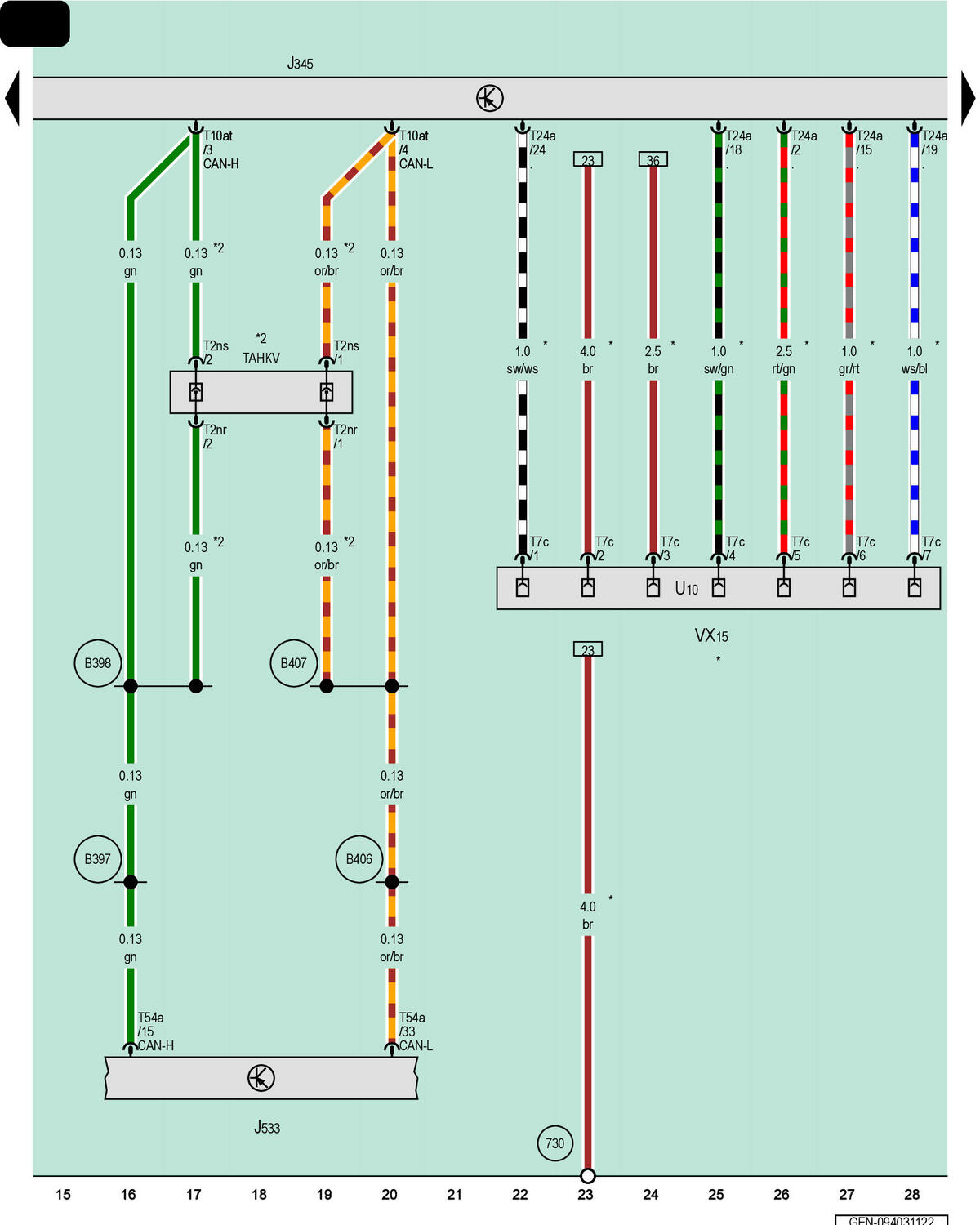

Towing Recognition Control Module, Data Bus On Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

J345

Towing Recognition Control Module

J533

Data Bus on Board Diagnostic Interface

T2nr

2-Pin Connector, Black

T2ns

2-Pin Connector, Black

T7c

7-Pin Connector

T10at

10-Pin Connector, Black

T24a

24-Pin Connector, Black

T54a

54-Pin Connector, Black

TAHKV

Electric Trailer Brake Coupling Point

U10

Trailer Socket

VX15

Trailer Hitch

730

Ground Connection 1 on Right Rear Wheel Housing

B397

Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)

B398

Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)

B406

Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)

B407

Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)

*

Not Included in the Preparation

*2

For Vehicles with Trailer Setup
