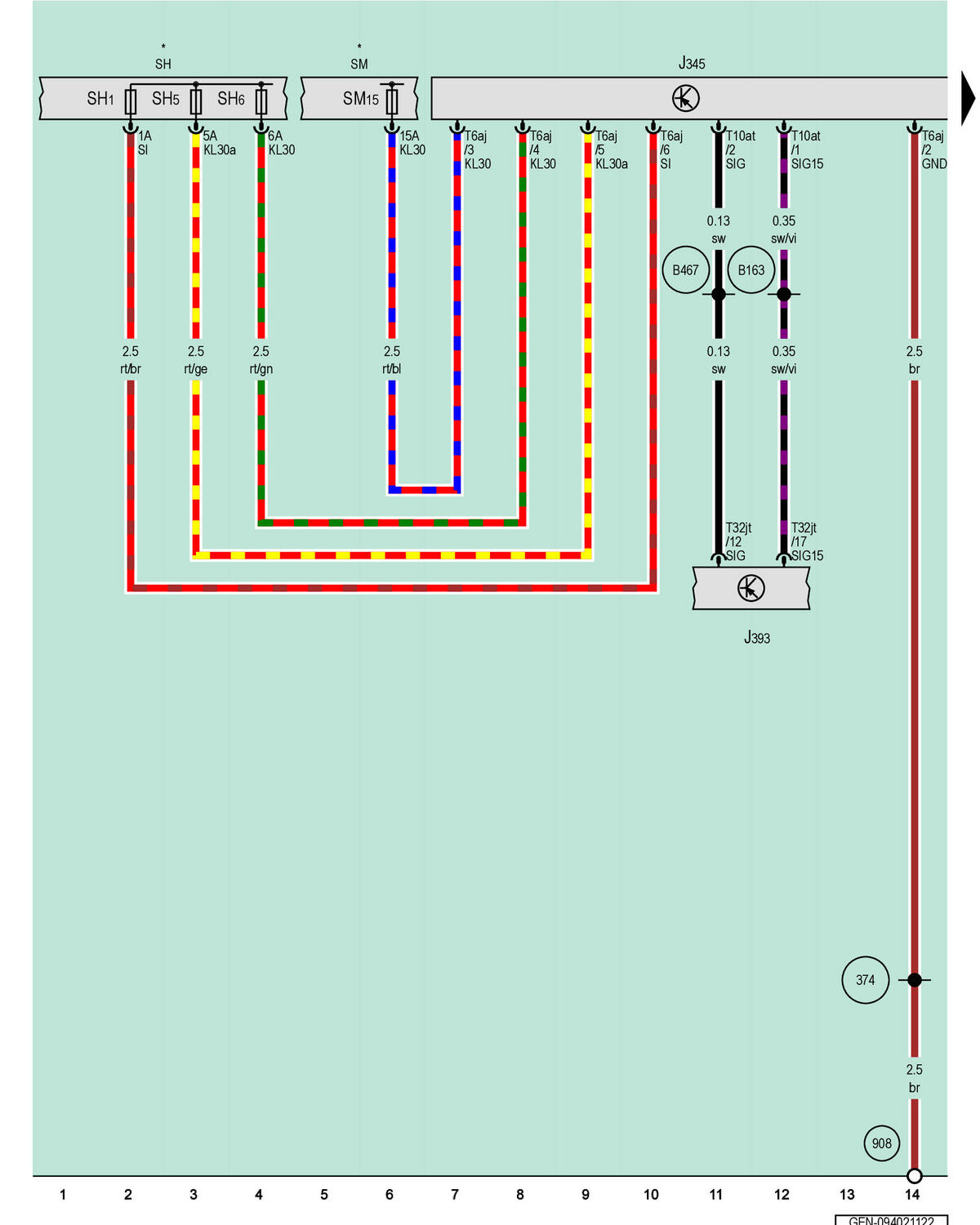

Towing Recognition Control Module, Comfort System Central Control Module

Courtesy of AUDI OF AMERICA, LLC

J345

Towing Recognition Control Module

J393

Comfort System Central Control Module

SH

Fuse Panel H

SH1

Fuse 1 on Fuse Panel H

SH5

Fuse 5 on Fuse Panel H

SH6

Fuse 6 on Fuse Panel H

SM

Fuse Panel M

SM15

Fuse 15 on Fuse Panel M

T6aj

6-Pin Connector, Black

T10at

10-Pin Connector, Black

T32jt

32-Pin Connector, Black

374

Ground Connection 9 (in Main Wiring Harness)

908

Ground Connection 2 on Left Rear Wheel Housing

B163

Positive Connection 1 (15) (in Interior Wiring Harness)

B467

Connection 3 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions
