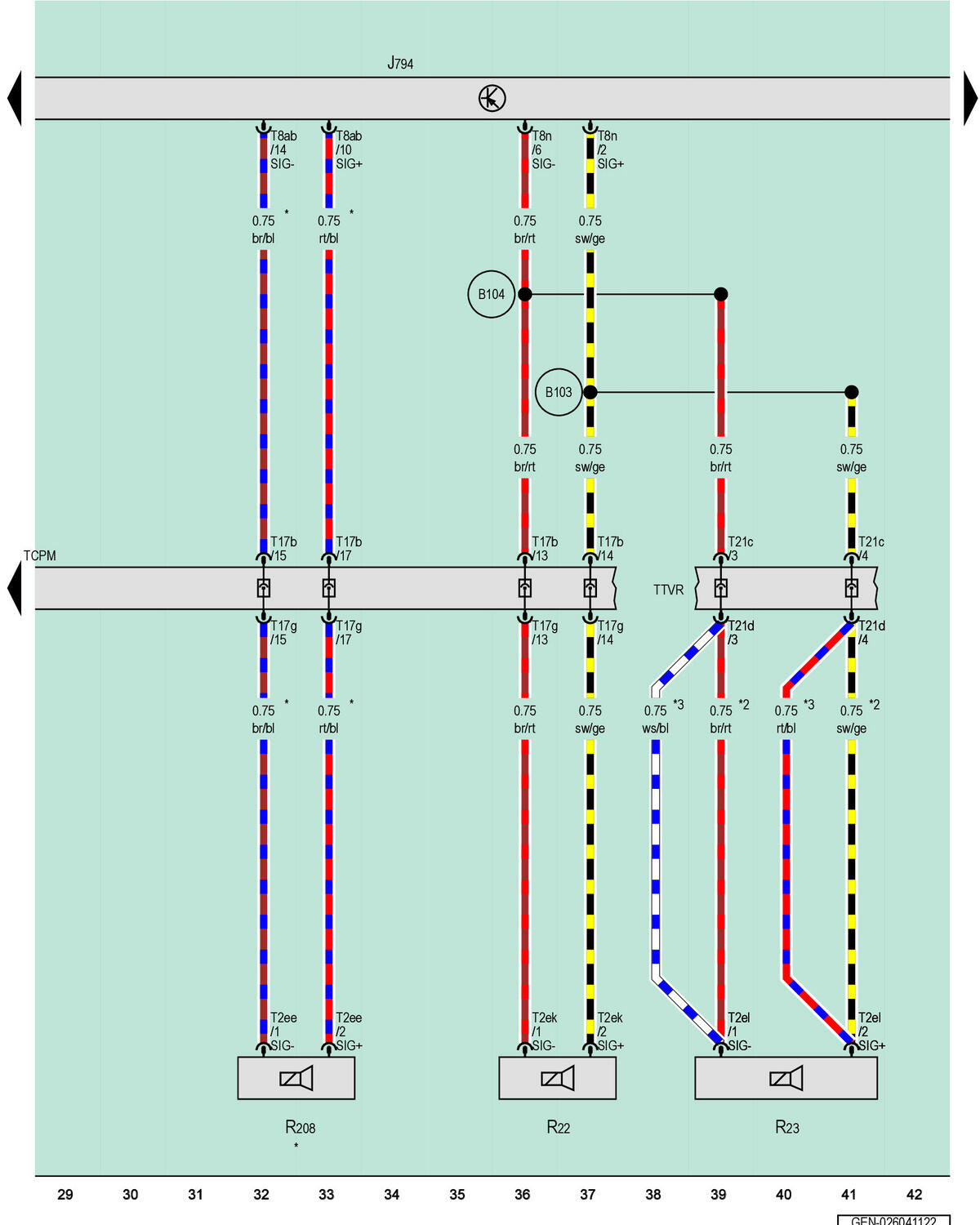

Information Electronics Control Module 1, Right Front Treble Speaker, Right Front Bass Speaker, Center Speaker

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R22

Right Front Treble Speaker

R23

Right Front Bass Speaker

R208

Center Speaker

T2ee

2-Pin Connector, Black

T2ek

2-Pin Connector, Black

T2el

2-Pin Connector, Black

T8ab

8-Pin Connector, Black

T8n

8-Pin Connector, Brown

T17b

17-Pin Connector, Blue

T17g

17-Pin Connector, Blue

T21c

21-Pin Connector, Black

T21d

21-Pin Connector, Black

TCPM

Coupling Point on Instrument Panel, Center

TTVR

Right Front Door Coupling Point

B103

Right Front Speaker Positive Connection (in Main Wiring Harness)

B104

Right Front Speaker Negative Connection (in Main Wiring Harness)

*

For Vehicles with Standard Sound System

*2

For LHD Vehicles

*3

For RHD Vehicles
