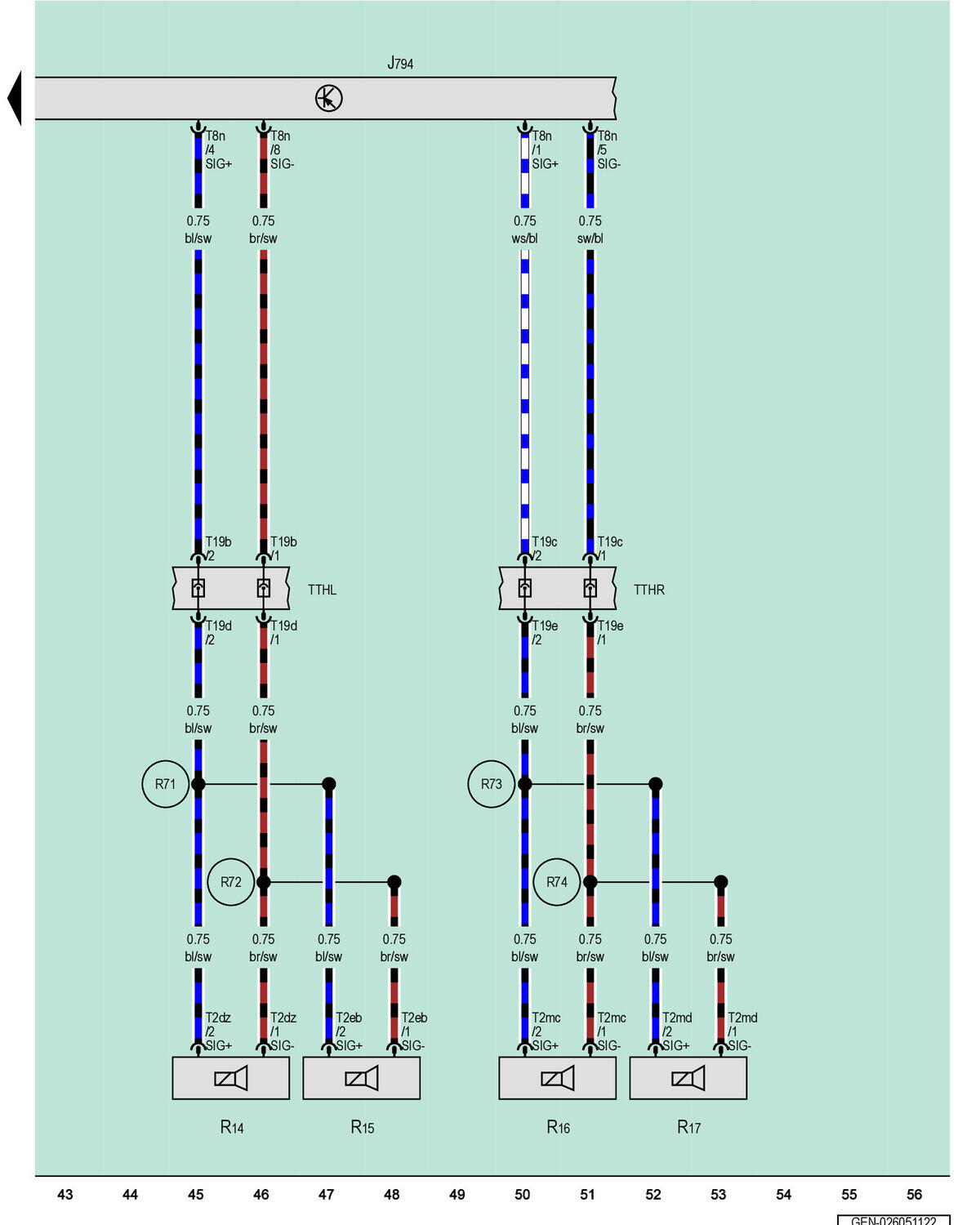

Information Electronics Control Module 1, Left Rear Treble Speaker, Left Rear Bass Speaker, Right Rear Treble Speaker, Right Rear Bass Speaker

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R14

Left Rear Treble Speaker

R15

Left Rear Bass Speaker

R16

Right Rear Treble Speaker

R17

Right Rear Bass Speaker

T2dz

2-Pin Connector, Black

T2eb

2-Pin Connector, Black

T2mc

2-Pin Connector, Black

T2md

2-Pin Connector, Black

T8n

8-Pin Connector, Brown

T19b

19-Pin Connector, Black

T19c

19-Pin Connector, Black

T19d

19-Pin Connector, Black

T19e

19-Pin Connector, Black

TTHL

Left Rear Door Coupling Point

TTHR

Right Rear Door Coupling Point

R71

Speaker Positive Connection (in Left Rear Door Wiring Harness)

R72

Speaker Negative Connection (in Left Rear Door Wiring Harness)

R73

Speaker Positive Connection (in Right Rear Door Wiring Harness)

R74

Speaker Negative Connection (in Right Rear Door Wiring Harness)
