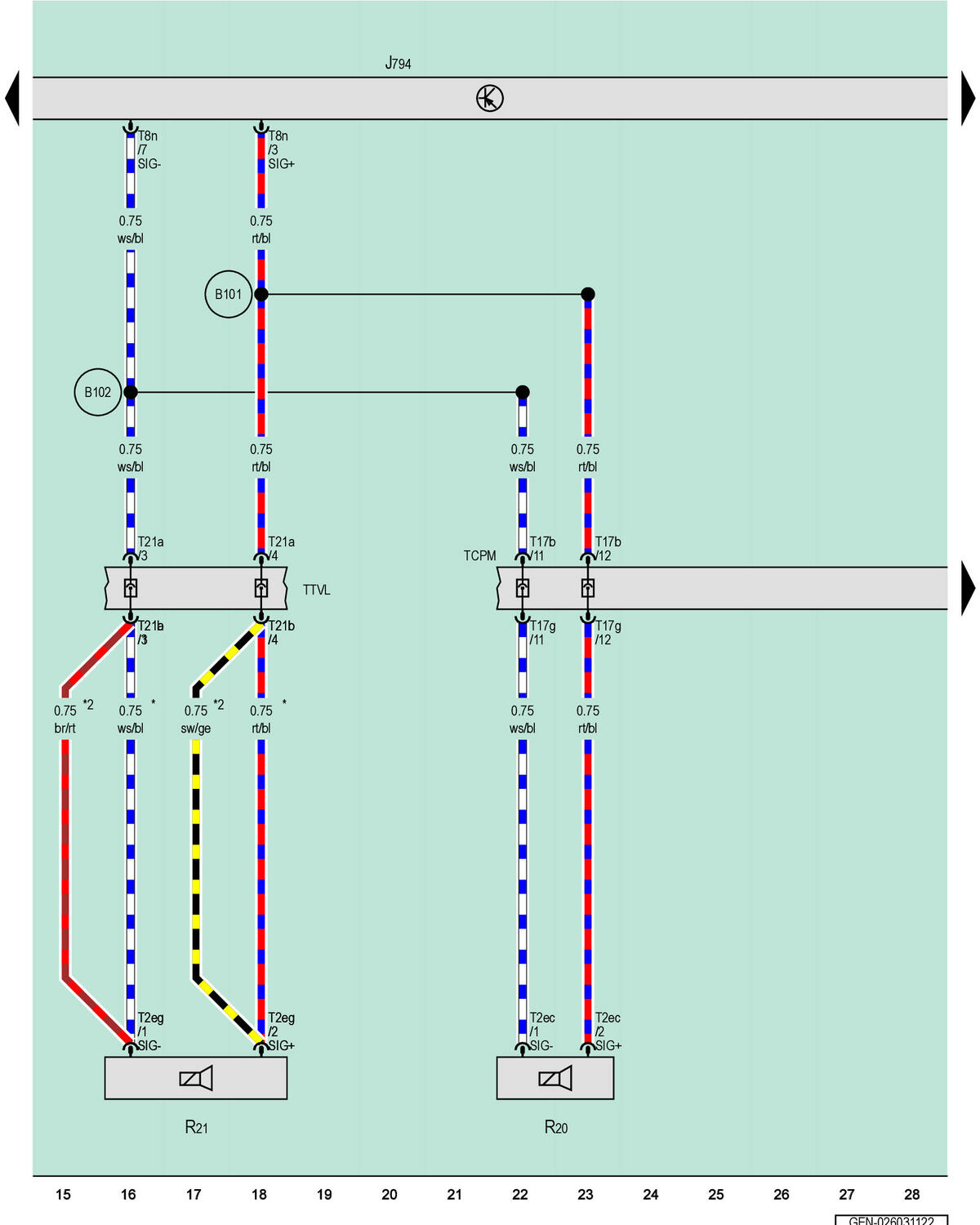

Information Electronics Control Module 1, Left Front Treble Speaker, Left Front Bass Speaker

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R20

Left Front Treble Speaker

R21

Left Front Bass Speaker

T2ec

2-Pin Connector, Black

T2eg

2-Pin Connector, Black

T8n

8-Pin Connector, Brown

T17b

17-Pin Connector, Blue

T17g

17-Pin Connector, Blue

T21a

21-Pin Connector, Black

T21b

21-Pin Connector, Black

TCPM

Coupling Point on Instrument Panel, Center

TTVL

Left Front Door Coupling Point

B101

Left Front Speaker Positive Connection (in Main Wiring Harness)

B102

Left Front Speaker Negative Connection (in Main Wiring Harness)

*

For LHD Vehicles

*2

For RHD Vehicles
